Product Details

ASTM A193 Grade B7 threaded rod is alloy-steel bolting material for pressure-related and other special-purpose service when specified by the project. This page covers continuous-thread rod or cut-to-length pieces; it should not be ordered only by the words “B7 rod.”

Order definition

Specify diameter, thread series, total length, cut-end condition and quantity.
State whether the requirement is full-length rod, finished studs, or stock length for later cutting.
Confirm plain/black condition or a project-approved coating system.
State MTC, heat traceability, marking, inspection and packing requirements.

If the rod will become flange studs, confirm finished stud length, chamfer, nut grade and assembly requirements before cutting.

Selection & Use Steps

Confirm whether the order is for stock rod, cut lengths or finished studs.
Specify B7, diameter, thread series, overall length and end preparation.
Confirm coating, lubricant, mating components and coating allowance.
Verify MTC, heat number, straightness, dimensions and thread condition.
After cutting, protect the ends, maintain traceability where required and inspect the finished length and chamfer.

Technical Drawing

All-thread stud drawing showing end-to-end length and effective thread length

The reference drawing applies to a full-thread piece with flat chamfered ends. End-to-end length and effective thread length are separate inspection dimensions. Confirm the finished length after cutting and chamfering.

Application Environment

Use is controlled by the project specification for ASTM A193 B7, the finished component design and the selected corrosion-protection system. Bare alloy steel requires appropriate storage and may require project-specified protection for humid or corrosive service.

Installation & Handling Precautions

Maintain heat or batch traceability through cutting when required.
Do not leave burrs, incomplete chamfers or damaged first threads after cutting.
Confirm thread fit after coating and before packing.
Protect finished pieces from standing water, impact and mixed-grade storage.
Use project-approved nuts, lubrication and tightening procedure for the final joint.

RFQ Checklist

ASTM A193/A193M Grade B7 and required edition
Stock rod, cut length or finished stud
Diameter, UNC/8UN or specified thread, and total length
End chamfer, marking and cut tolerance
Plain/black or approved coating and lubricant
Quantity, MTC, heat traceability, packing and destination

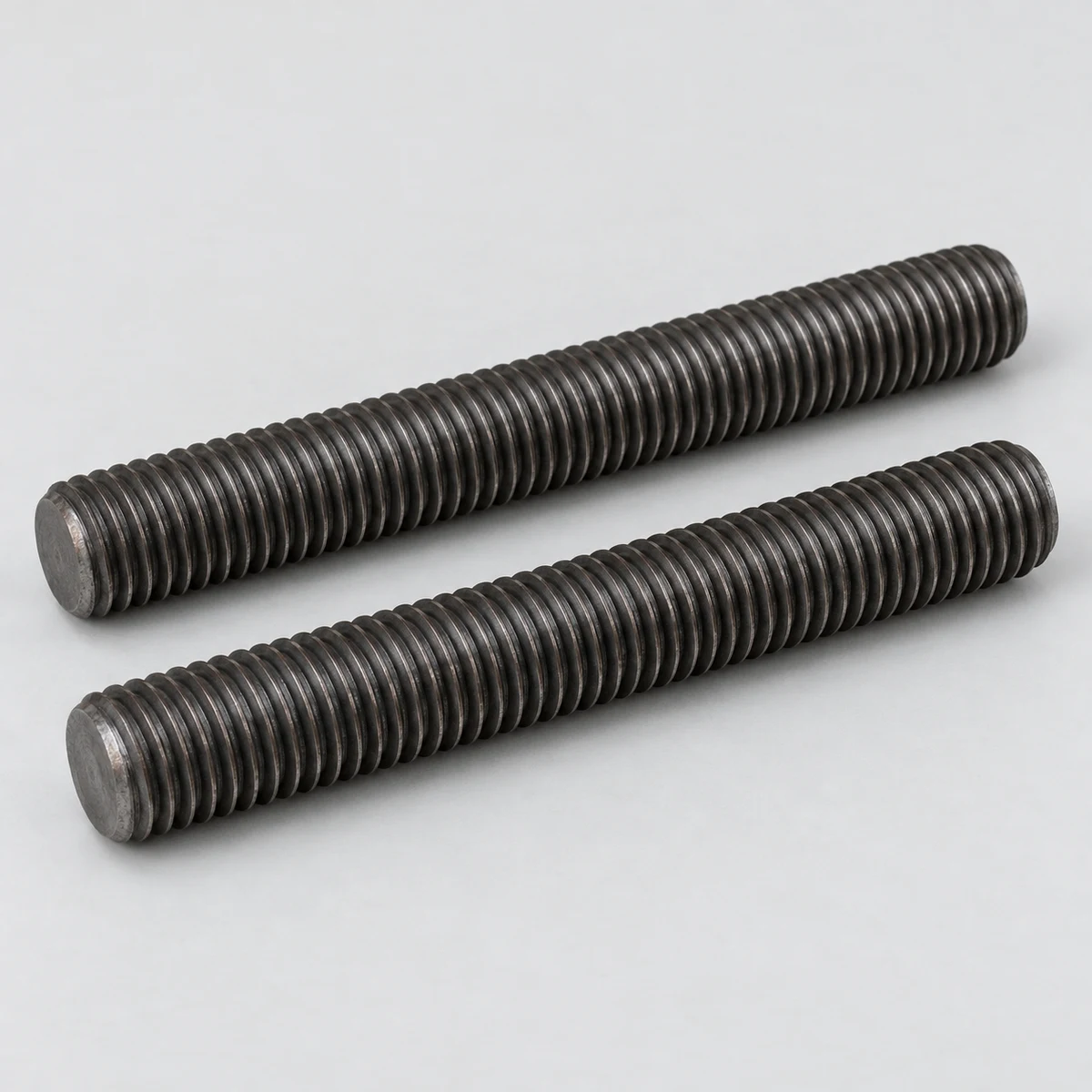

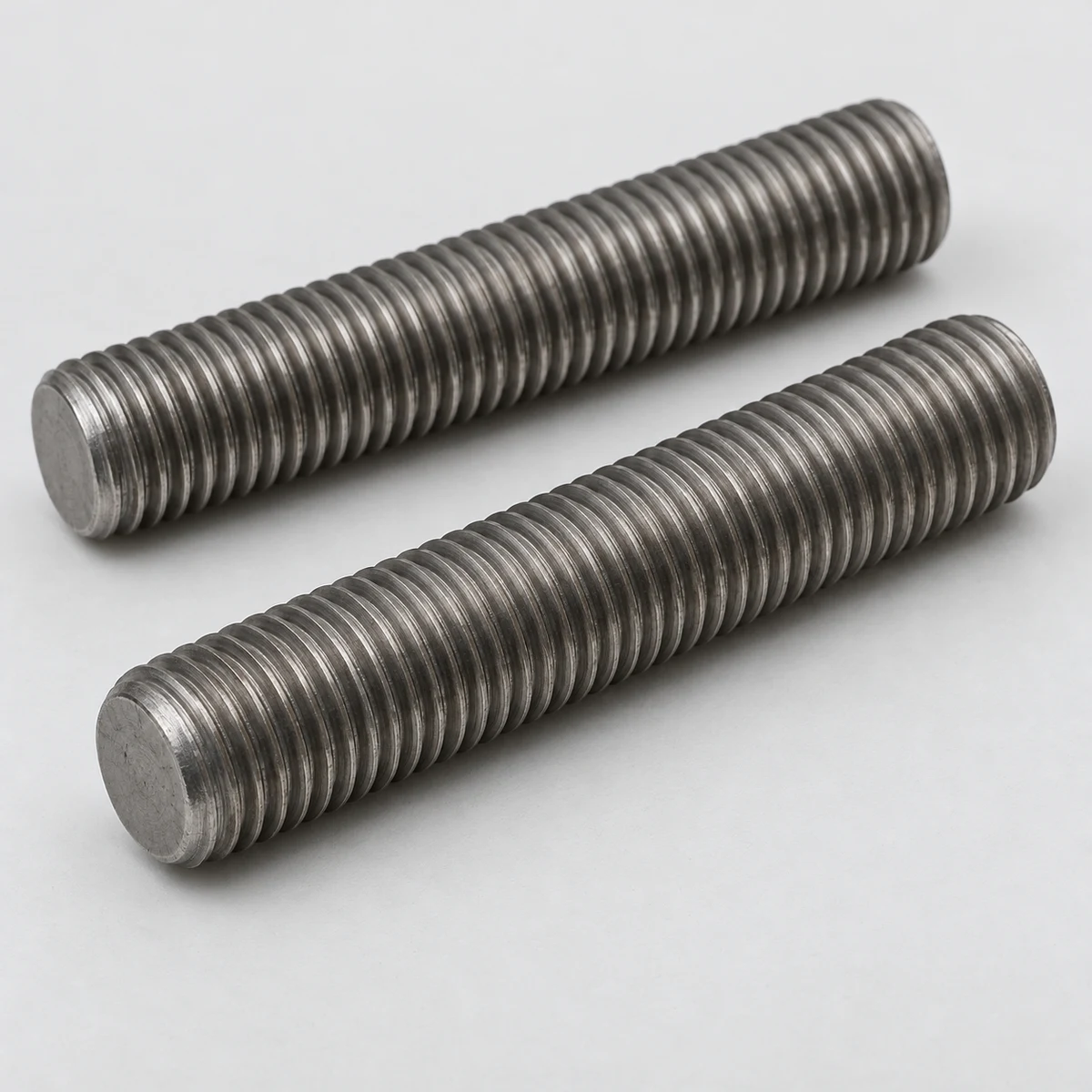

Product reference gallery

Form and finish reference; final compliance follows order documents.

Ordering framework

Confirm the specification before quotation.

This product page identifies the available product family and basic supply range. Final compliance depends on the exact standard, grade, dimensions, finish, mating components, tests and documents stated on the purchase order or approved drawing.

01Standard and editionState the governing product standard, drawing or approved equivalent.

02Grade and classConfirm material grade, property class, condition and any supplementary requirement.

03Size and threadDiameter, pitch or TPI, thread series, fit or tolerance and handedness where applicable.

04Length and geometryOverall or effective length, head or end style, thread length and drawing dimensions.

05Finish and assemblyCoating standard, thickness or color, lubrication and mating-part compatibility.

06Quantity and evidenceLot quantity, packing, marking, MTC, inspection scope and destination requirements.

Request this product with a complete specification.

Product · standard · grade · size · finish · quantity · documents · destination
