Chemical Anchor

Product Details

Chemical Anchor is used to secure fixtures with a specified bonded anchor system; suitability depends on the substrate, compatible resin and anchor element, embedment and installation conditions. The current supply reference is Project specification / approved drawing, with Carbon Steel / Stainless Steel, Zinc Plated / HDG / Plain, and M8-M30 3/8"-1".

Final dimensions, tolerances, grade or class, coating system, matched components, inspection documents and packing must be confirmed against the purchase order, approved drawing or project specification before production.

Where a European Technical Assessment (ETA) is required, confirm the assessment number, manufacturer, exact product and covered use before quotation. A generic product name or illustration does not establish assessed performance.

Selection & Use Steps

Confirm substrate, design load, fixture thickness, edge distance and spacing.
Select the compatible resin and anchor element, dimensions and embedment from the specified system data.
Check the drilling, hole preparation and setting procedure for the actual substrate and hole condition.
Observe the specified working and curing times for the installation temperature before tightening or loading.
Complete the required installation inspection and records.
Where an ETA is specified, verify the assessment number, manufacturer, exact product, substrate and covered use.

Technical Drawing

Confirm anchor element diameter, thread, length, embedment, hole diameter and depth, fixture thickness, edge distance and spacing against the approved drawing and specified system data.

Identify the compatible resin and any required system accessories. Illustrations do not establish load capacity or installation dimensions.

Application Environment

Check the specified system for the actual substrate, hole condition and installation temperature. Confirm exposure and material or finish requirements for the anchor element.

Wet holes, overhead installation and sustained loading require product-specific suitability and installation evidence; do not infer suitability from the generic product name.

Installation & Handling Precautions

Use the specified resin, anchor element and accessories as a compatible system.
Follow the product-specific drilling and hole-cleaning procedure; do not substitute a generic preparation method.
Check resin storage conditions and expiry, and follow the specified dispensing or setting instructions.
Respect working time and allow the specified cure before tightening, disturbing or loading the anchor.
Use the system-specific tightening procedure and installation checks; do not apply a generic torque or cure time.

RFQ Checklist

Product name, specified resin and compatible anchor element or system reference
Substrate, hole condition, design load and installation location
Anchor dimensions, embedment, hole diameter and depth, fixture thickness, edge distance and spacing
Anchor material and finish, installation temperature and required exposure
Quantity, system accessories, packing and destination
Approved drawing and required installation, inspection or traceability documents
If an ETA is required: assessment number, manufacturer, exact product and covered sizes, substrate and intended use

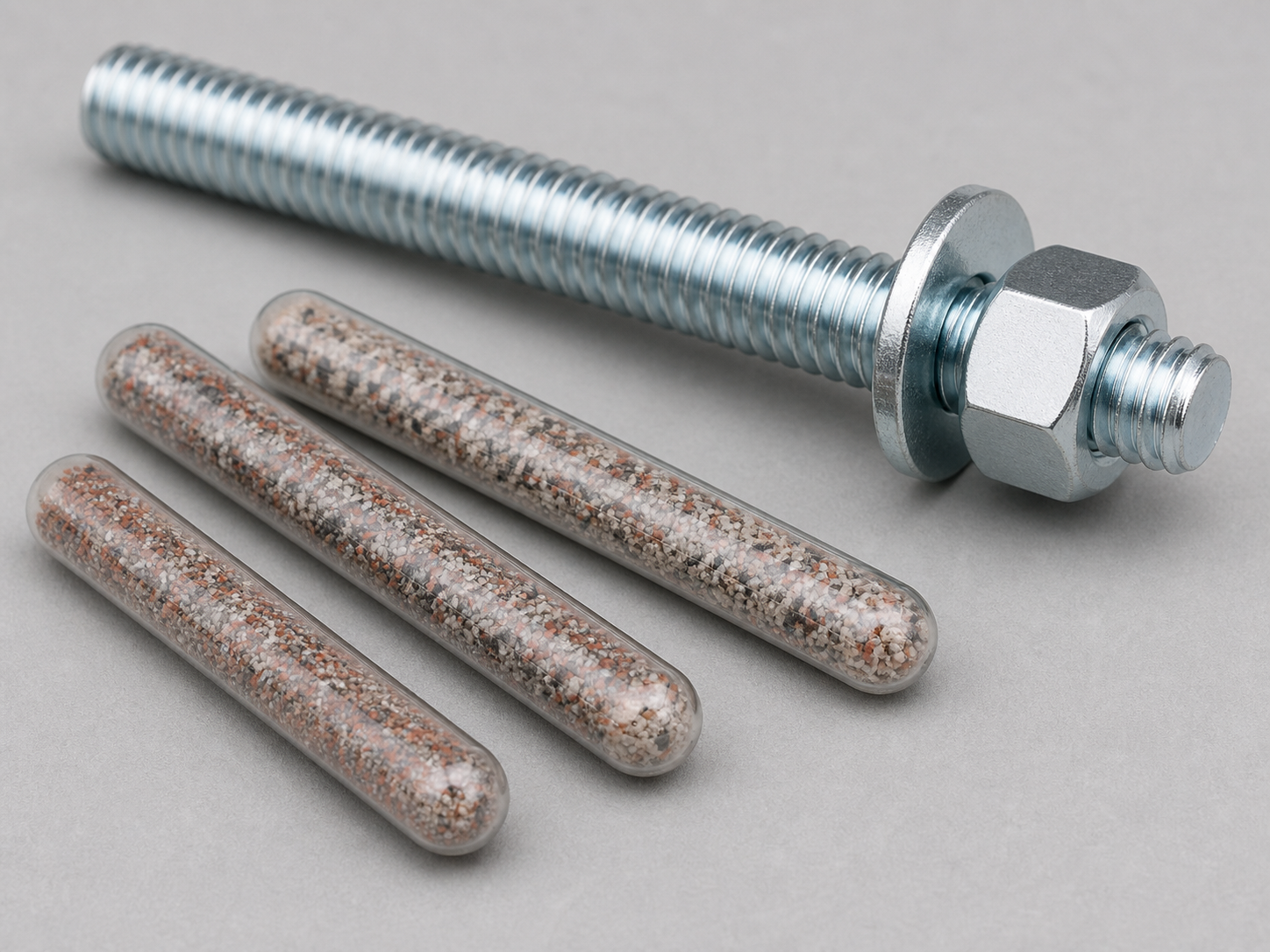

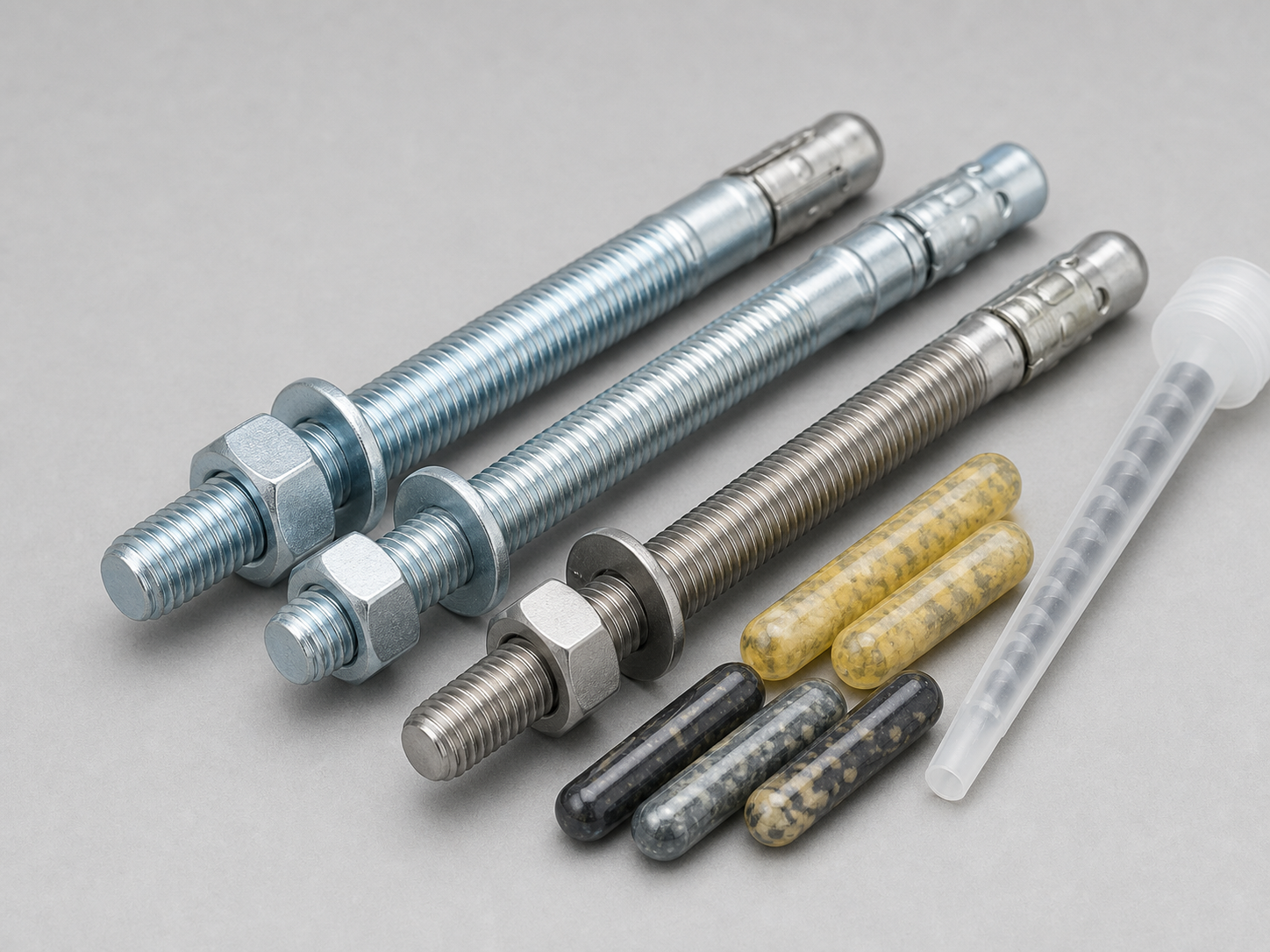

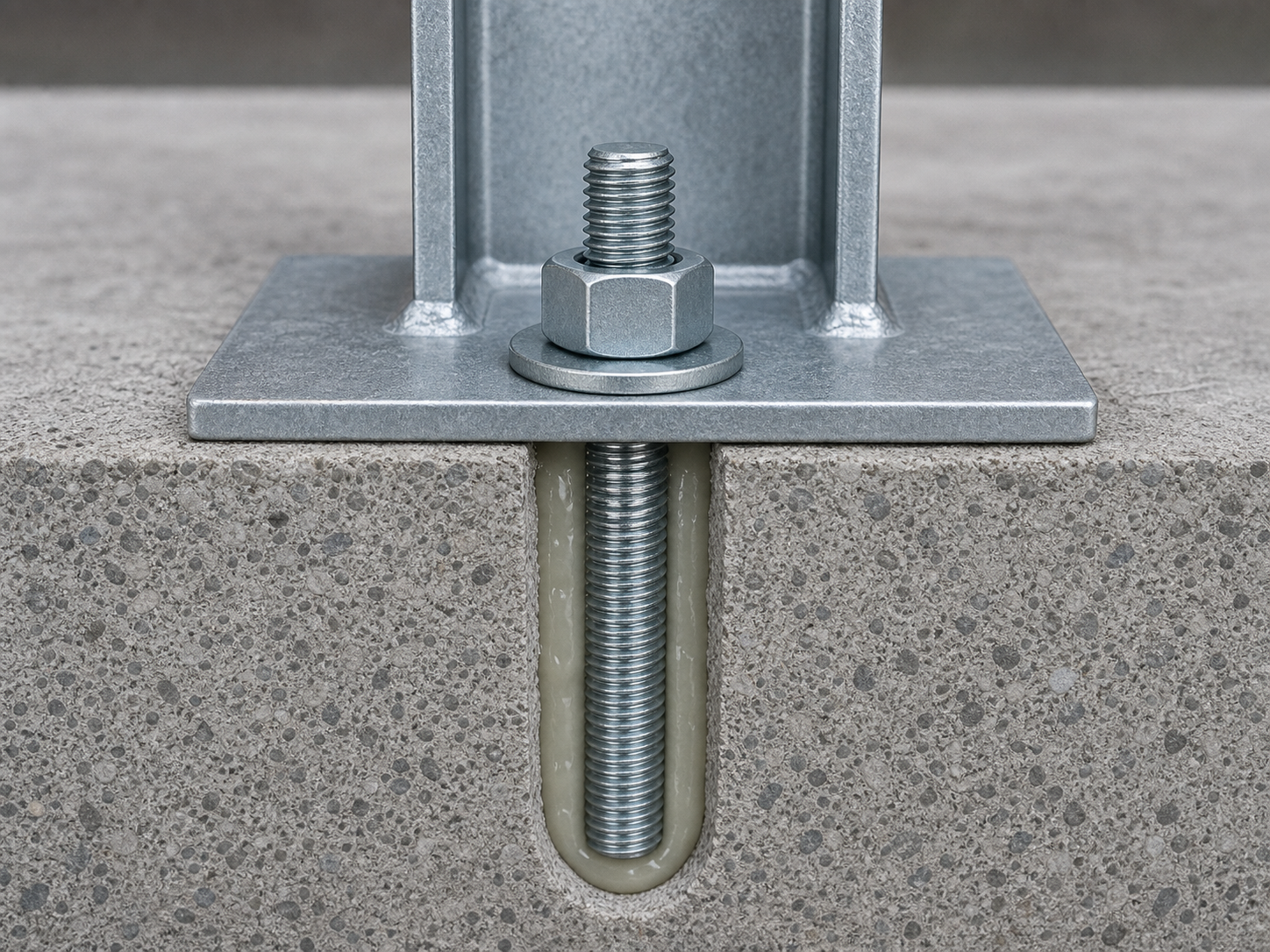

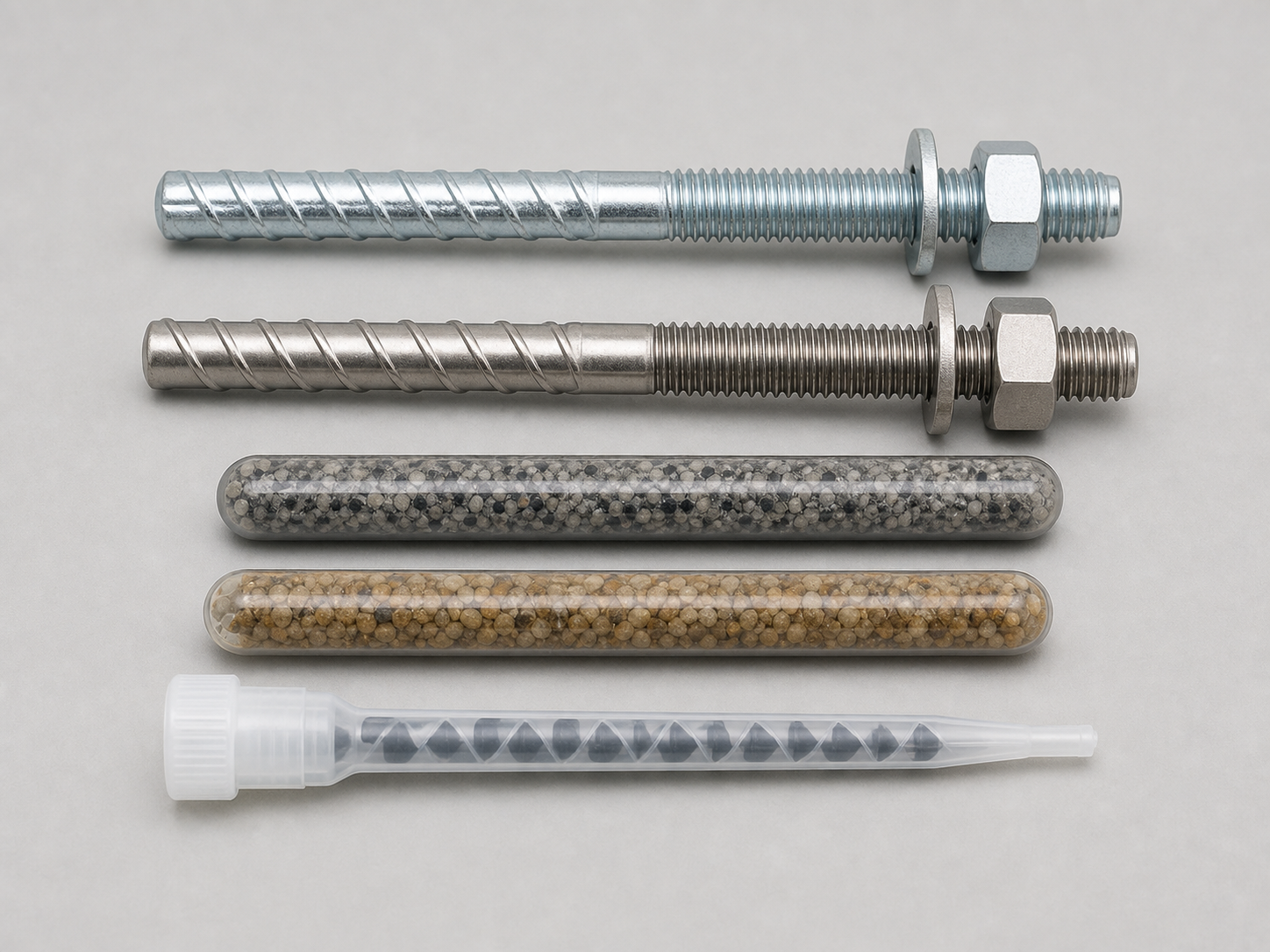

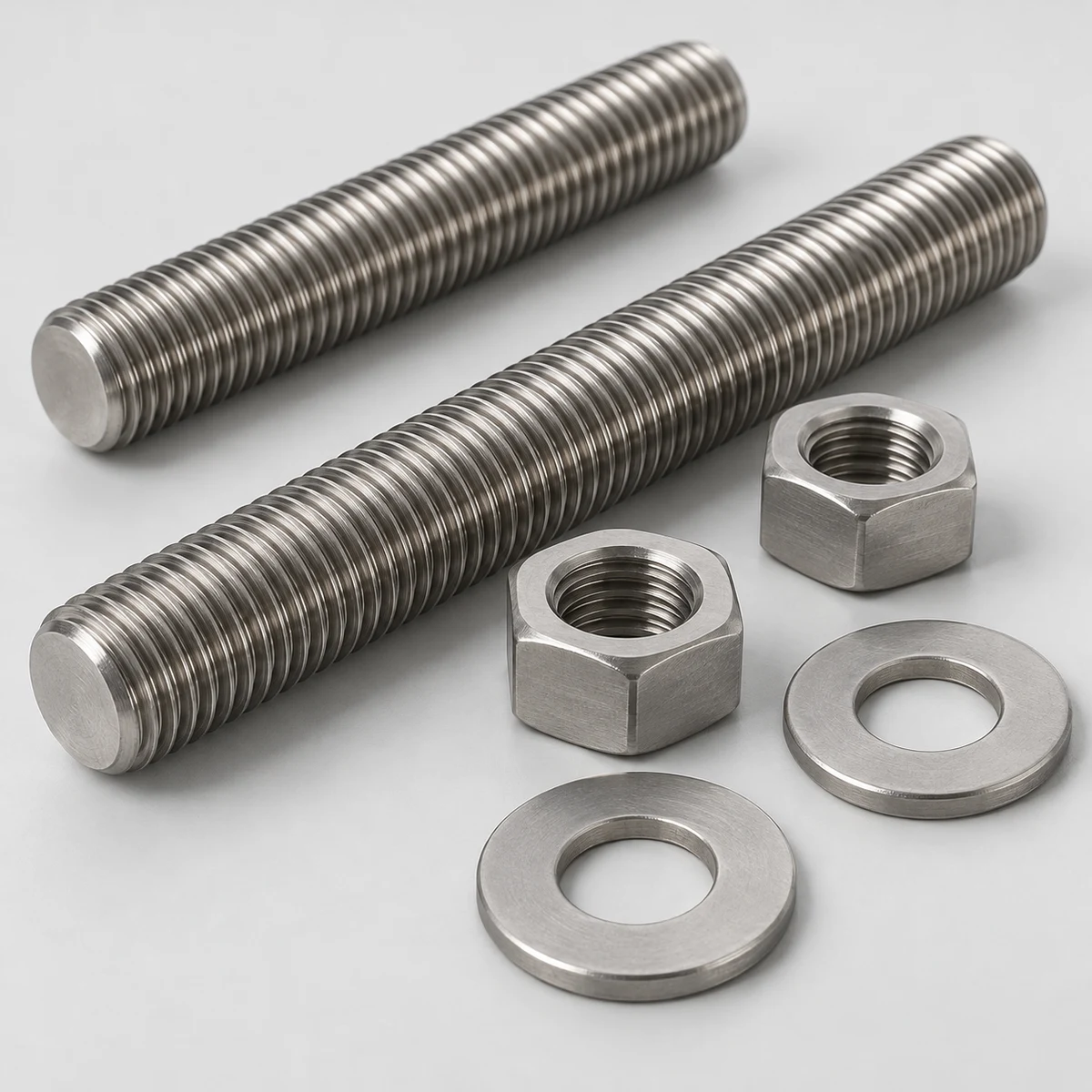

Product reference gallery

Form and finish reference; final compliance follows order documents.

Ordering framework

Confirm the specification before quotation.

This product page identifies the available product family and basic supply range. Final compliance depends on the exact standard, grade, dimensions, finish, mating components, tests and documents stated on the purchase order or approved drawing.

01Standard and editionState the governing product standard, drawing or approved equivalent.

02Grade and classConfirm material grade, property class, condition and any supplementary requirement.

03Size and threadDiameter, pitch or TPI, thread series, fit or tolerance and handedness where applicable.

04Length and geometryOverall or effective length, head or end style, thread length and drawing dimensions.

05Finish and assemblyCoating standard, thickness or color, lubrication and mating-part compatibility.

06Quantity and evidenceLot quantity, packing, marking, MTC, inspection scope and destination requirements.

Request this product with a complete specification.

Product · standard · grade · dimensions · finish · quantity · documents · destination

Attach drawings or a size list in your email or WhatsApp conversation. State any required tests or documents for confirmation.
