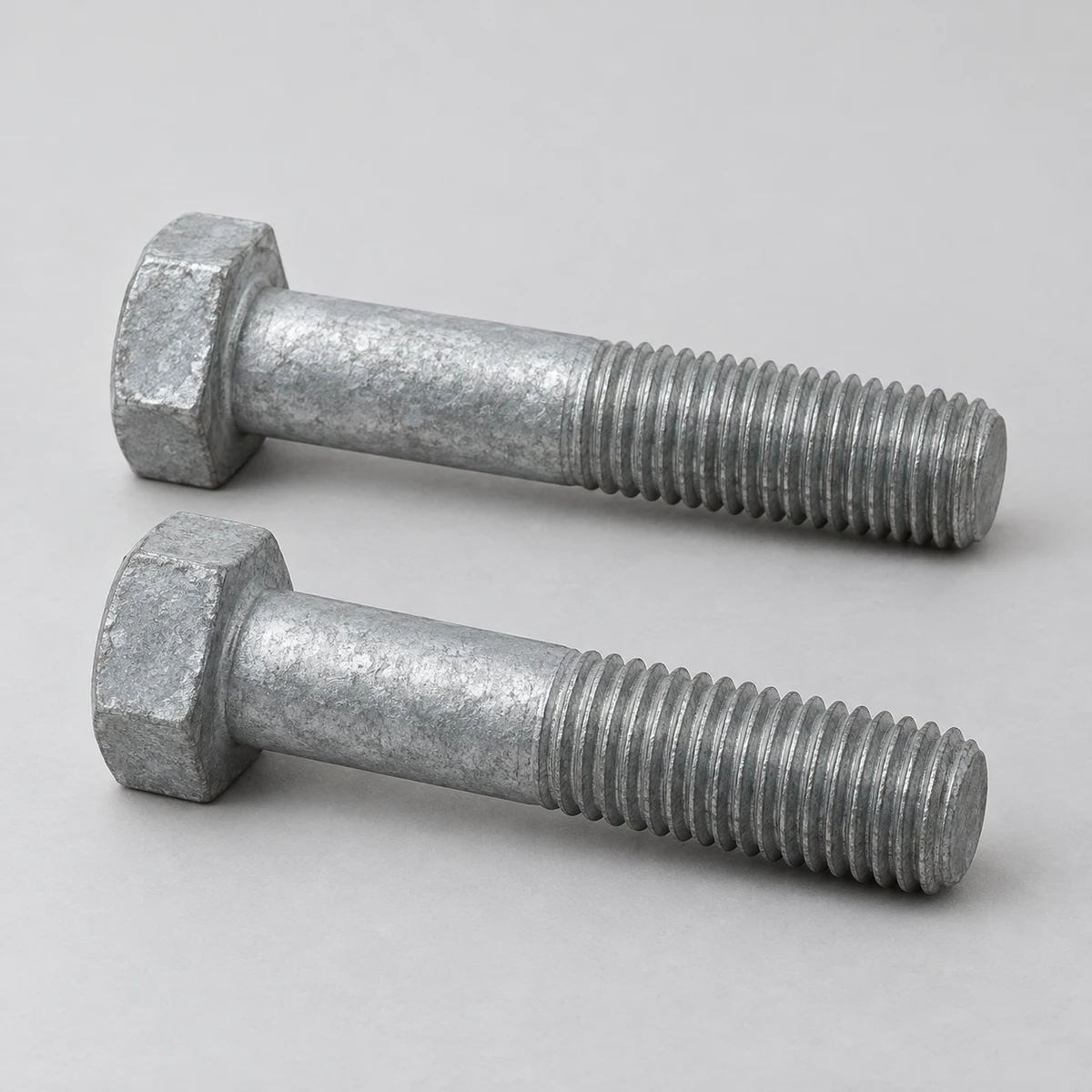

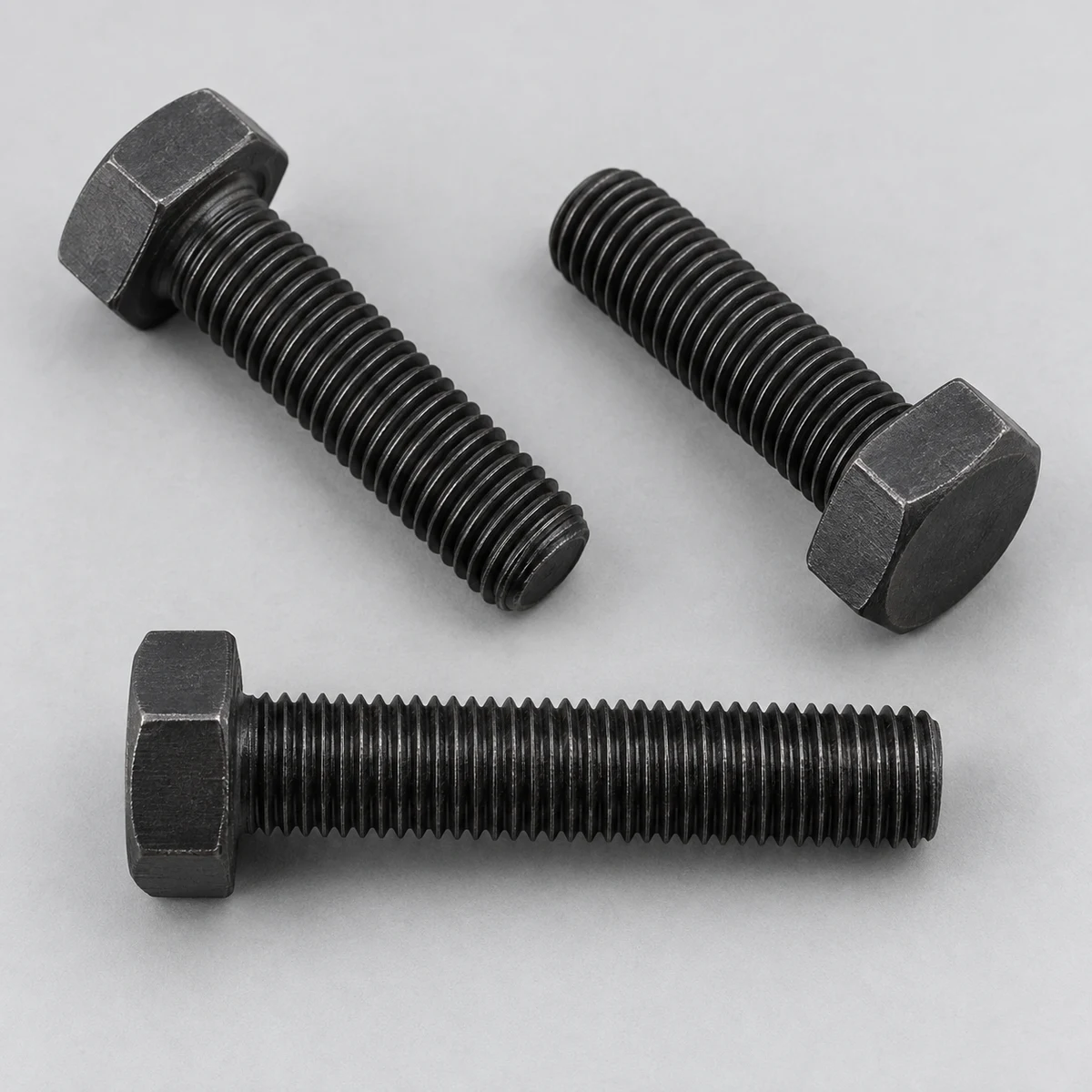

Hex Bolt - DIN 931 family, hot-dip galvanized, partially threaded hex head (product illustration)Hex Bolt - DIN 933 family, black finish, fully threaded hex head (product illustration)
Fasteners

Hex Bolt

Bolts

Used for machinery, steel structures, construction, equipment assembly and general fastening applications.

Size / Spec
M6–M64/4.8
Material
Carbon Steel / Alloy Steel / Stainless Steel
Standard
DIN 933 / DIN 931 / ISO 4014 / ISO 4017 / GB 5782 / GB 5783 / ANSI / ASME
Surface / Finish
Zinc Plated / HDG / Black / Plain
Send Inquiry

Product Details

Hex Bolt is supplied for machinery, steel structures, construction, equipment assembly and general fastening applications. The current supply reference is DIN 933 / DIN 931 / ISO 4014 / ISO 4017 / GB 5782 / GB 5783 / ANSI / ASME, with Carbon Steel / Alloy Steel / Stainless Steel, Zinc Plated / HDG / Black / Plain, and M6–M64/4.8.

Final dimensions, tolerances, grade or class, coating system, matched components, inspection documents and packing must be confirmed against the purchase order, approved drawing or project specification before production.

Selection & Use Steps

  1. Confirm the joint drawing, service condition and governing standard.
  2. Select grade or class, diameter, thread series, length, end configuration and matched nuts or washers.
  3. Specify finish, coating, lubrication, inspection documents and traceability requirements.
  4. Inspect markings, dimensions, threads and coating condition before assembly.
  5. Install using the project-approved tightening sequence, tools and engineering procedure.

Technical Drawing

Hex-head bolt technical catalog sheet with head-specific dimensions and reference geometry

The side elevation uses under-head length l, excluding the head. Confirm thread diameter d, thread length b, head height k and width across flats s in the separate end view. Partial thread is illustrated; full-thread, fine-thread and other variants require confirmation against the selected standard.

The illustration is a dimension-selection reference, not a manufacturing drawing and not to scale. Final geometry, tolerances, material, finish and mating-part fit must follow the buyer-approved drawing and applicable standard.

Application Environment

Suitable application depends on the confirmed material, grade, finish and project design. Review exposure to moisture, chemicals, salt, temperature, vibration and dissimilar metals before selection.

For outdoor or corrosive service, confirm that the selected coating or stainless grade is compatible with the required service life and installation method.

Installation & Handling Precautions

  • Do not mix grades, heat numbers, thread series or nut classes during storage and installation.
  • Protect threads and coatings from impact, contamination and uncontrolled repair.
  • Confirm nut and washer compatibility, coating allowance and free thread engagement before assembly.
  • Do not apply a generic torque value; tightening depends on lubrication, coating, joint design and the approved engineering procedure.
  • Replace components with damaged threads, uncertain identification or unacceptable coating condition.

RFQ Checklist

  • Product name and governing standard: DIN 933 / DIN 931 / ISO 4014 / ISO 4017 / GB 5782 / GB 5783 / ANSI / ASME
  • Grade, class or material: Carbon Steel / Alloy Steel / Stainless Steel
  • Diameter, thread, length and relevant dimensions: M6–M64/4.8
  • Surface finish or coating: Zinc Plated / HDG / Black / Plain
  • Quantity, matched nuts or washers, and packaging requirement
  • Required MTC, heat traceability, inspection or third-party documentation
  • Application, destination and any approved drawing or project specification
WWhatsApp

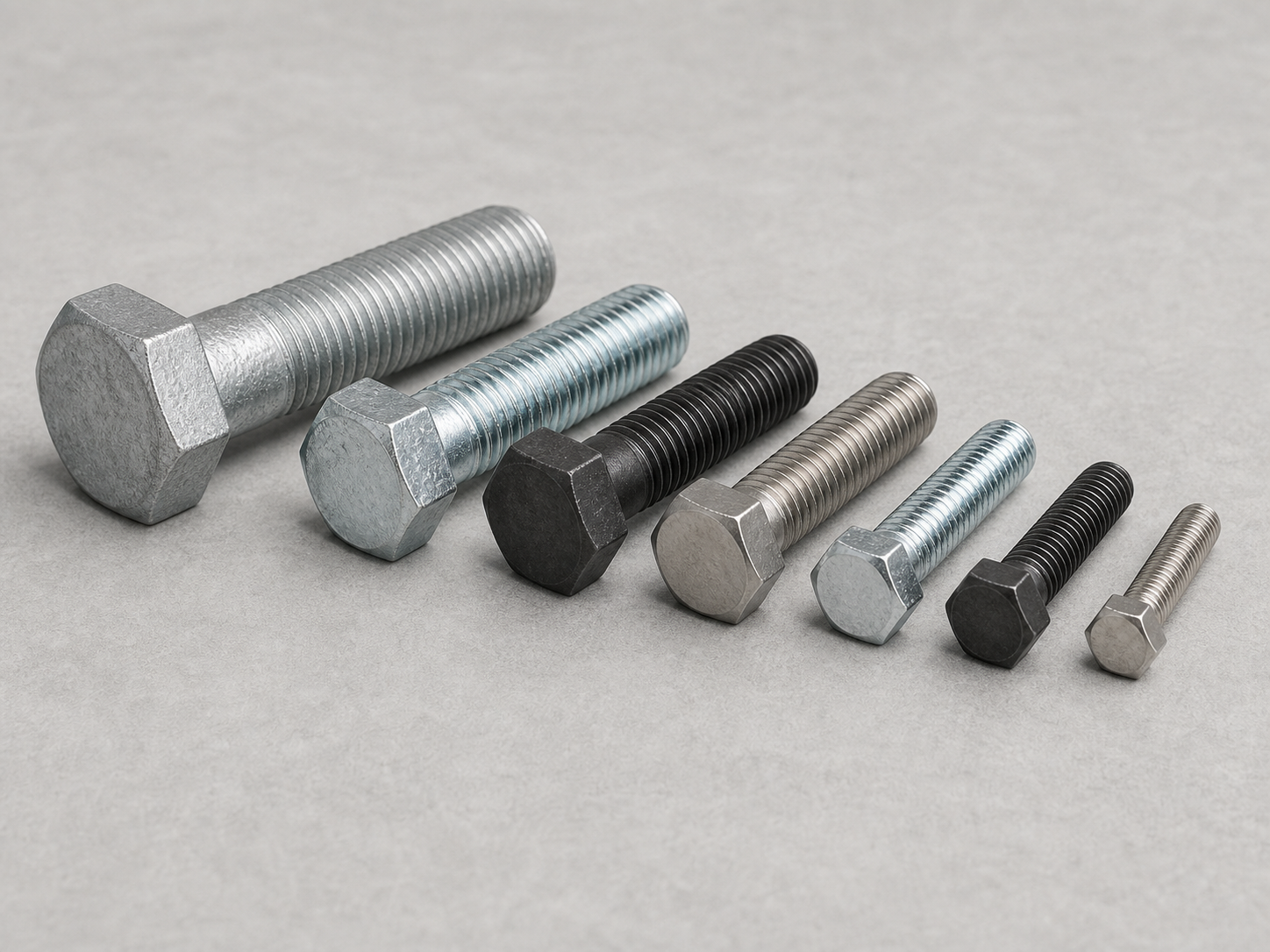

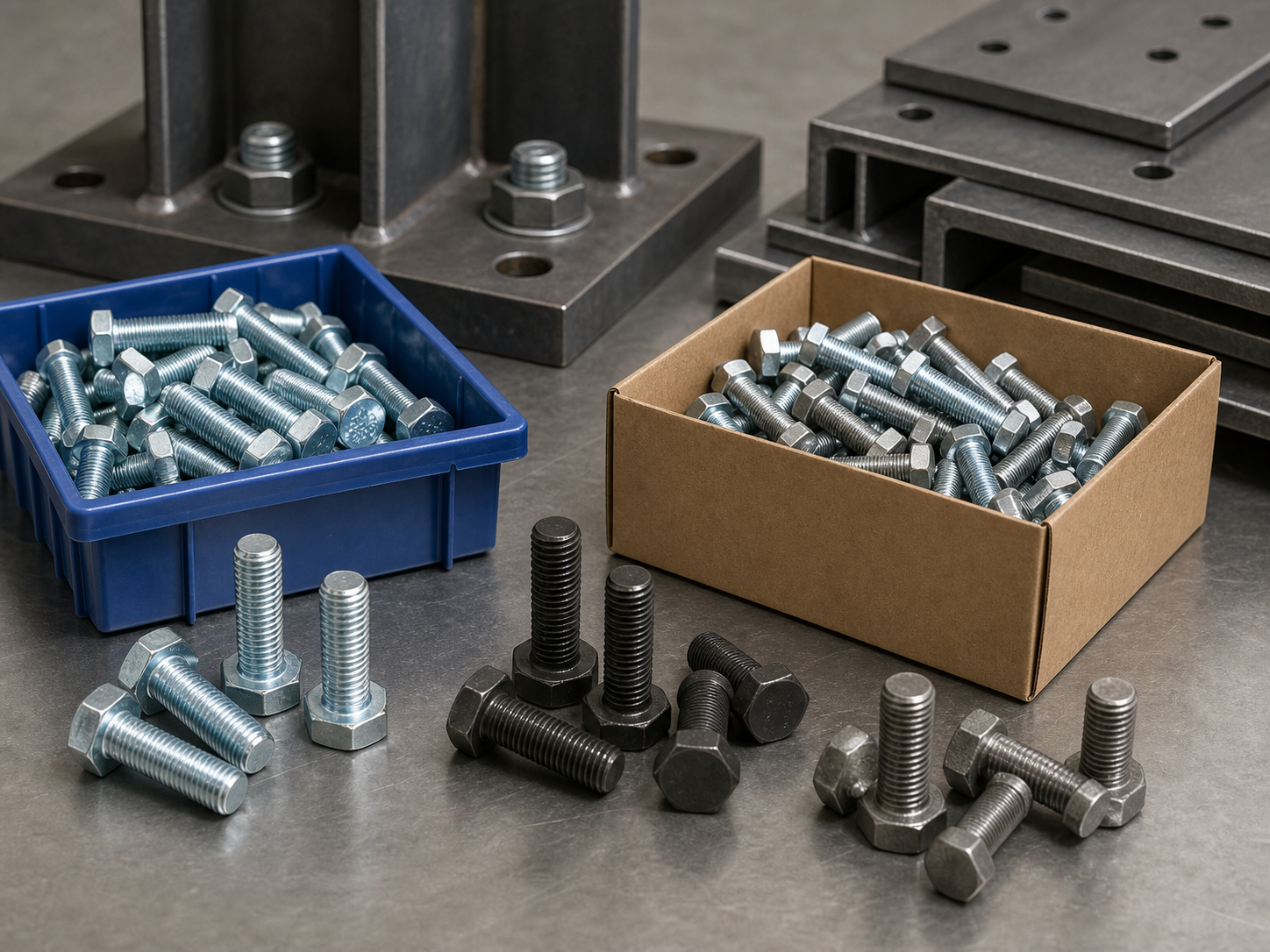

Product reference gallery

Form and finish reference; final compliance follows order documents.
Ordering framework

Confirm the specification before quotation.

This product page identifies the available product family and basic supply range. Final compliance depends on the exact standard, grade, dimensions, finish, mating components, tests and documents stated on the purchase order or approved drawing.

01Standard and editionState the governing product standard, drawing or approved equivalent.
02Grade and classConfirm material grade, property class, condition and any supplementary requirement.
03Size and threadDiameter, pitch or TPI, thread series, fit or tolerance and handedness where applicable.
04Length and geometryOverall or effective length, head or end style, thread length and drawing dimensions.
05Finish and assemblyCoating standard, thickness or color, lubrication and mating-part compatibility.
06Quantity and evidenceLot quantity, packing, marking, MTC, inspection scope and destination requirements.

Continue by product family.

Review the relevant family page before sending the final standard, grade, dimensions, finish and quantity.

Request this product with a complete specification.

Product · standard · grade · dimensions · finish · quantity · documents · destination

Attach drawings or a size list in your email or WhatsApp conversation. State any required tests or documents for confirmation.

WhatsApp RFQEmail RFQ
