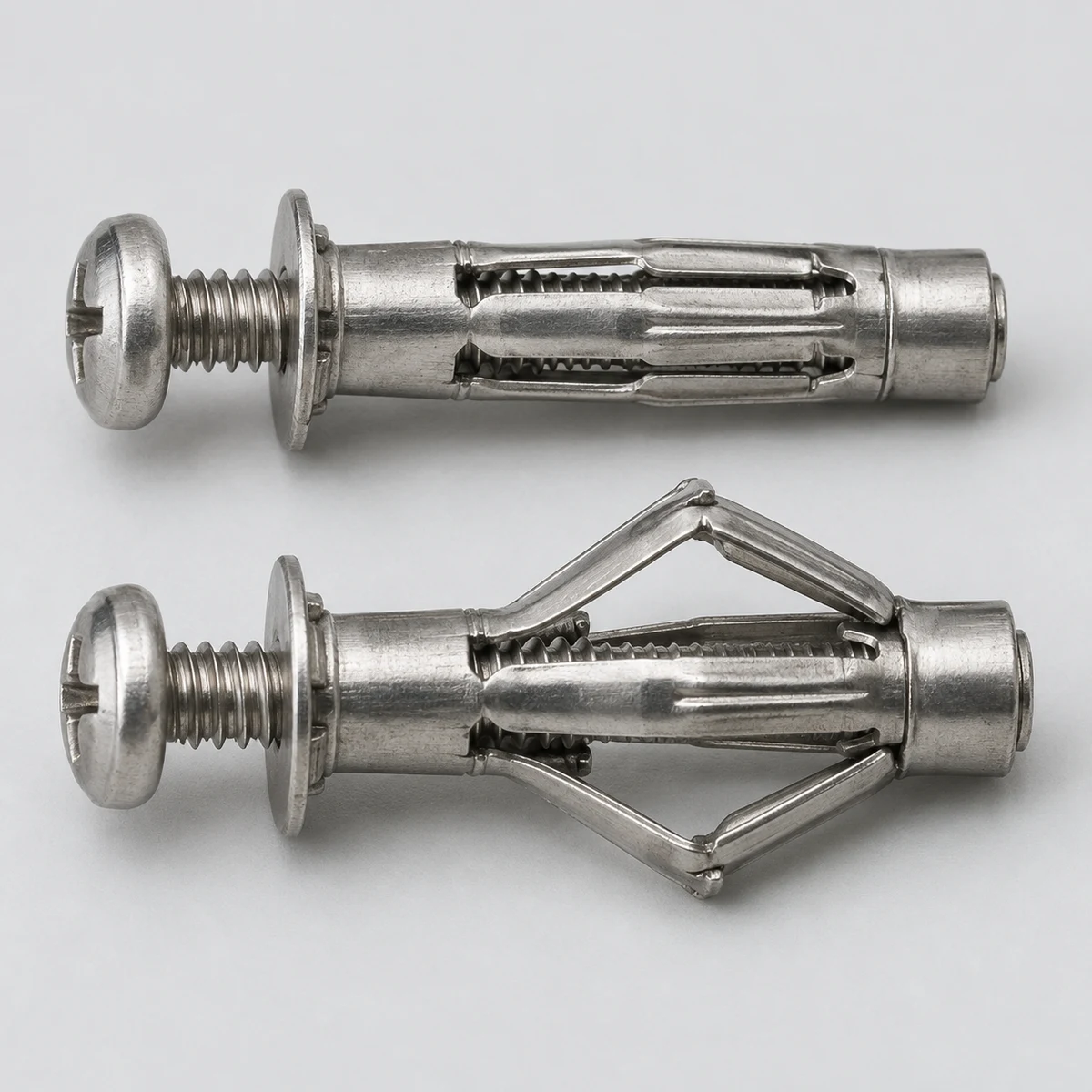

Hollow Wall Anchor - natural finish (product illustration)

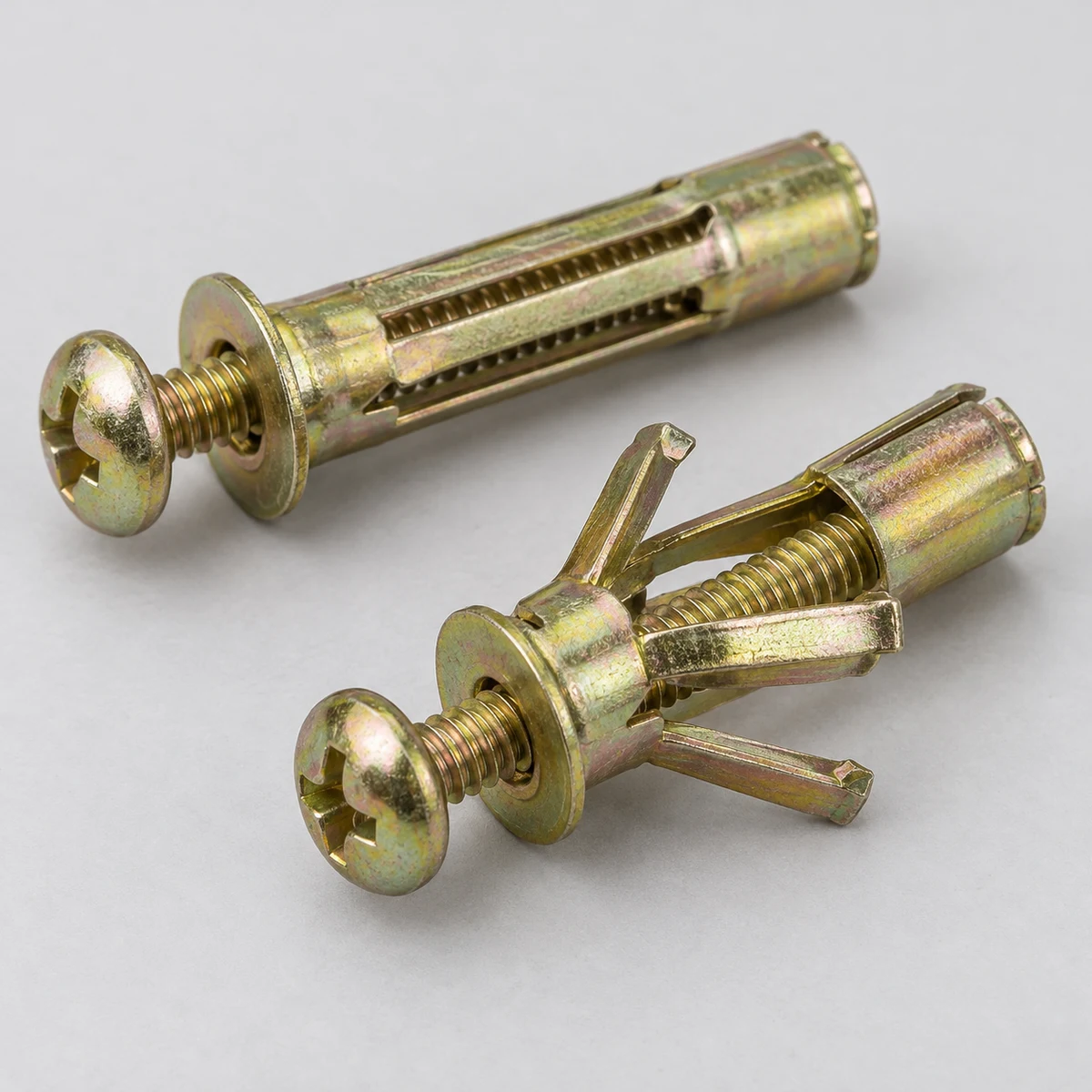

Hollow Wall Anchor - yellow zinc (product illustration)

Fasteners

Hollow Wall Anchor

Anchors

Used to fix fixtures to suitable hollow walls or panel materials using a cavity fixing; suitability depends on panel thickness, cavity clearance and the specified fixing system.

Size / Spec

M4-M12 1/8"-1/2"

Material

Carbon Steel / Stainless Steel

Standard

GB / DIN / Customized

Surface / Finish

Zinc Plated / Yellow Zinc / Plain

Send Inquiry

Product Details

Hollow Wall Anchor is used to fix fixtures to suitable hollow walls or panel materials using a cavity fixing; suitability depends on panel thickness, cavity clearance and the specified fixing system. The current supply reference is GB / DIN / Customized, with Carbon Steel / Stainless Steel, Zinc Plated / Yellow Zinc / Plain, and M4-M12 1/8"-1/2".

Final dimensions, tolerances, grade or class, coating system, matched components, inspection documents and packing must be confirmed against the purchase order, approved drawing or project specification before production.

Selection & Use Steps

Confirm panel material, thickness, cavity clearance, fixture thickness and design load.
Select the fixing design and compatible screw or bolt from product-specific data.
Verify hole diameter and the required space behind the panel.
Install with the selected system procedure; confirm correct setting and seating behind the panel.
Check the fixture and panel after installation; use the specified inspection procedure.

Technical Drawing

Confirm anchor design, panel thickness range, hole diameter, body length, cavity clearance, screw or bolt dimensions and fixture thickness against the approved drawing.

Illustrations do not establish setting dimensions or load capacity.

Application Environment

Suitability depends on the panel construction, condition and fixing design. Confirm material and finish for moisture, chemicals and the intended exposure.

Do not infer solid-concrete or foundation-anchor suitability from a generic anchor name.

Installation & Handling Precautions

Check for services and obstructions before drilling.
Use the specified hole and setting procedure; avoid damaging the panel.
Confirm proper cavity-fixing setting and rear-panel bearing before securing the fixture.
Use product-specific tightening instructions; avoid crushing the panel or stripping threads.
Do not infer load capacity from size or illustrations; verify applicable product data and project requirements.

RFQ Checklist

Product name, fixing design and approved drawing or project specification
Panel material, thickness, condition and available cavity clearance
Anchor and screw or bolt dimensions, hole diameter and fixture thickness
Required load and product-specific suitability evidence
Material and surface finish requirements
Quantities, packing, destination and required inspection documents

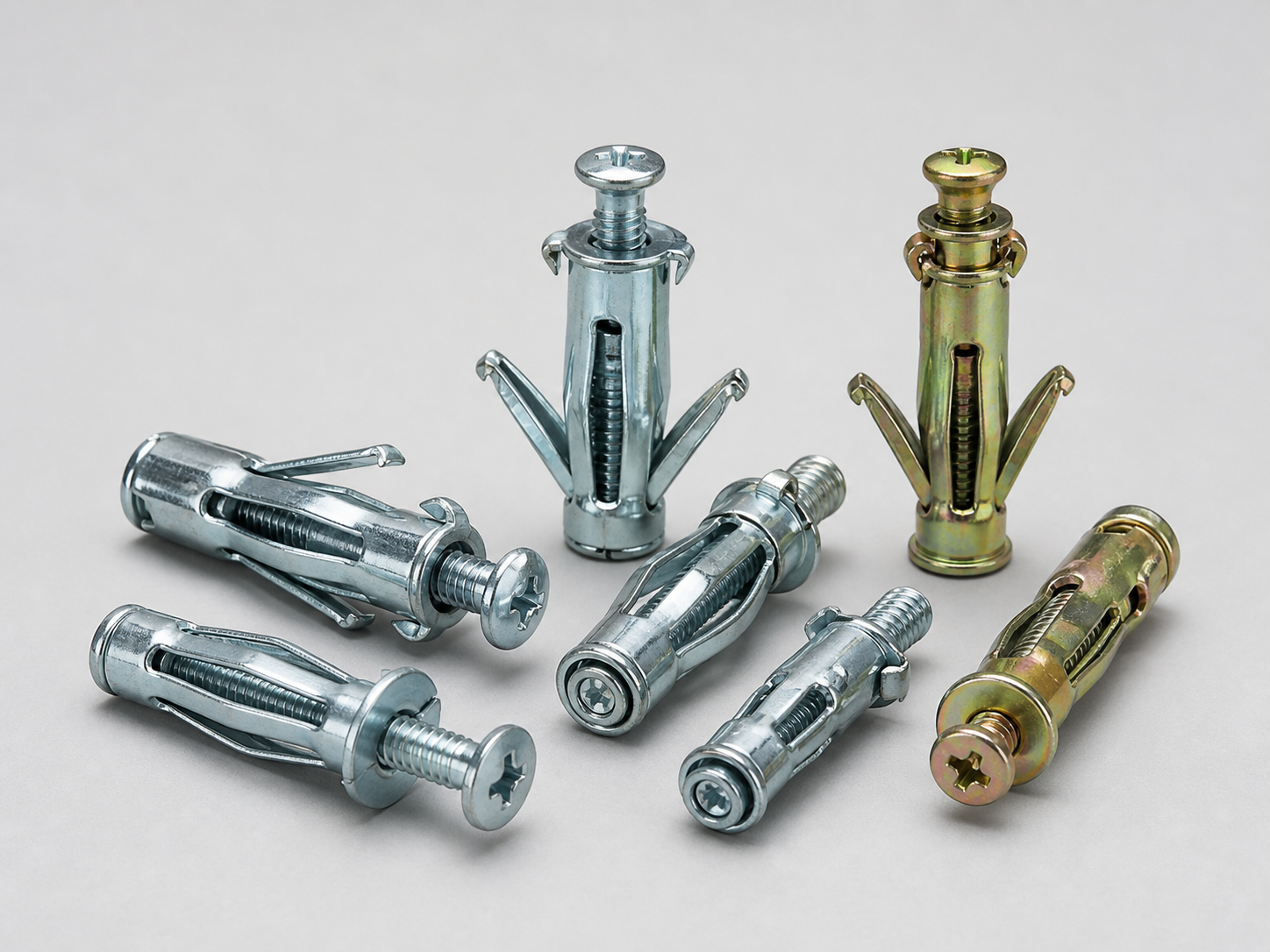

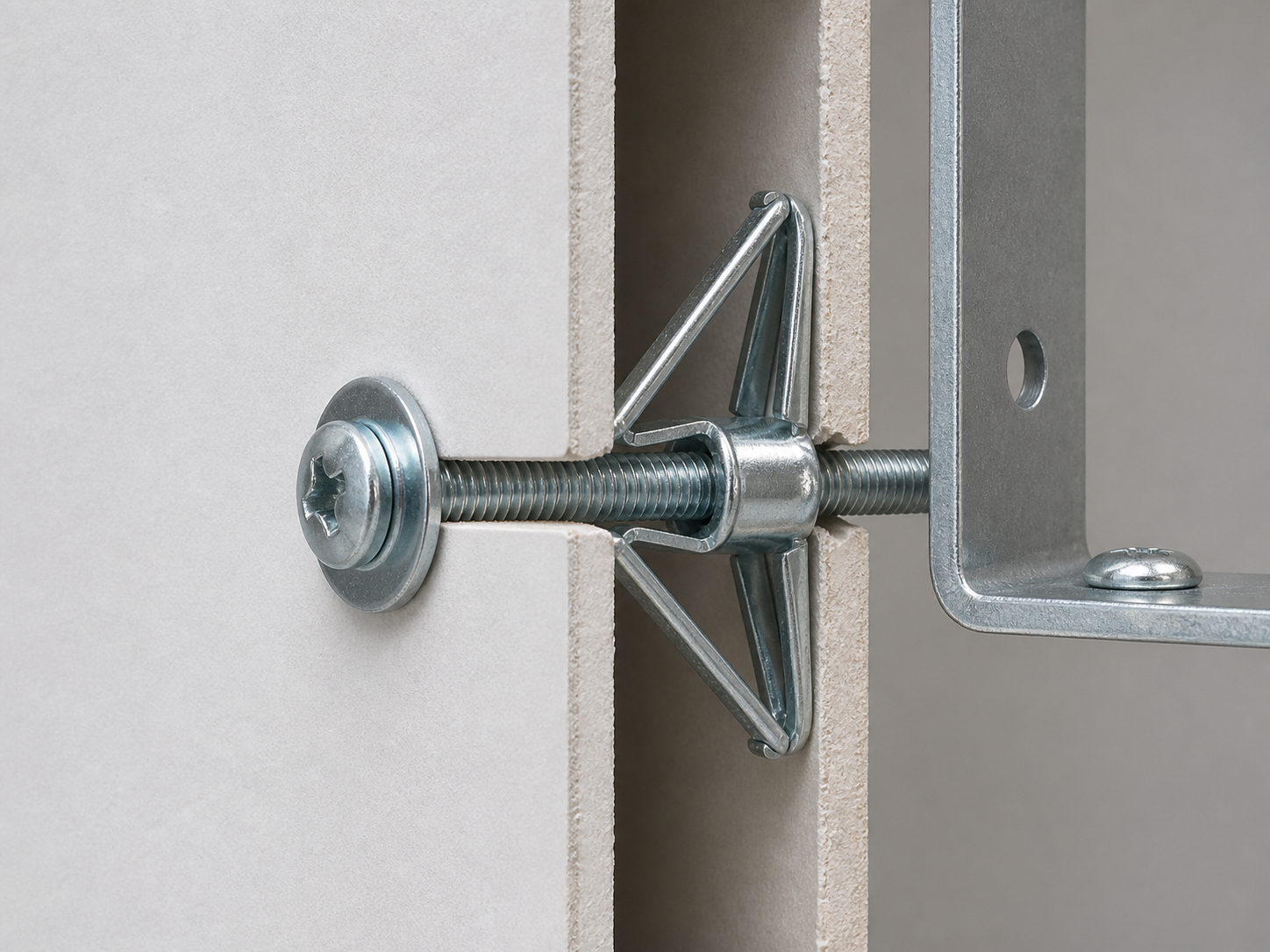

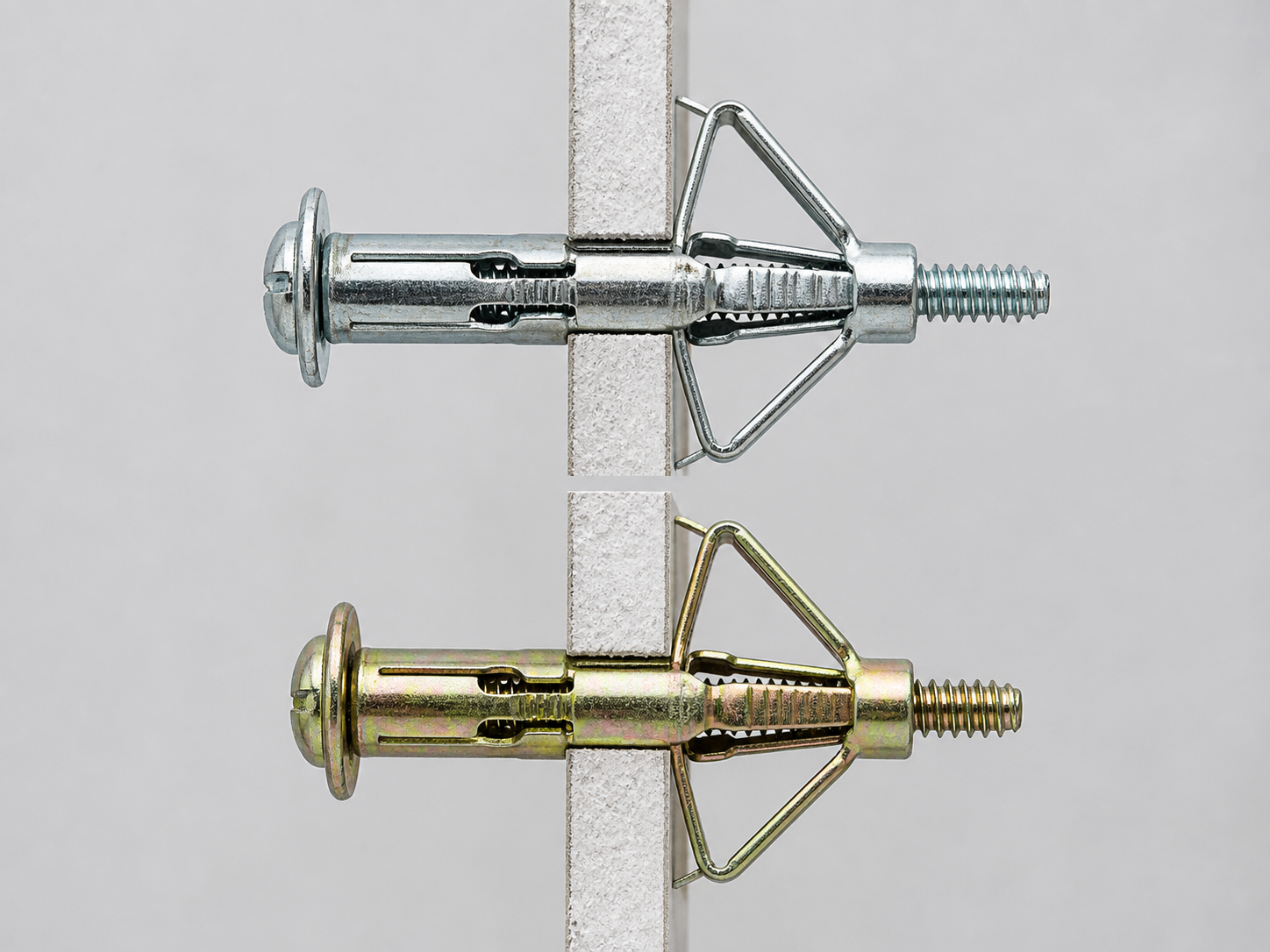

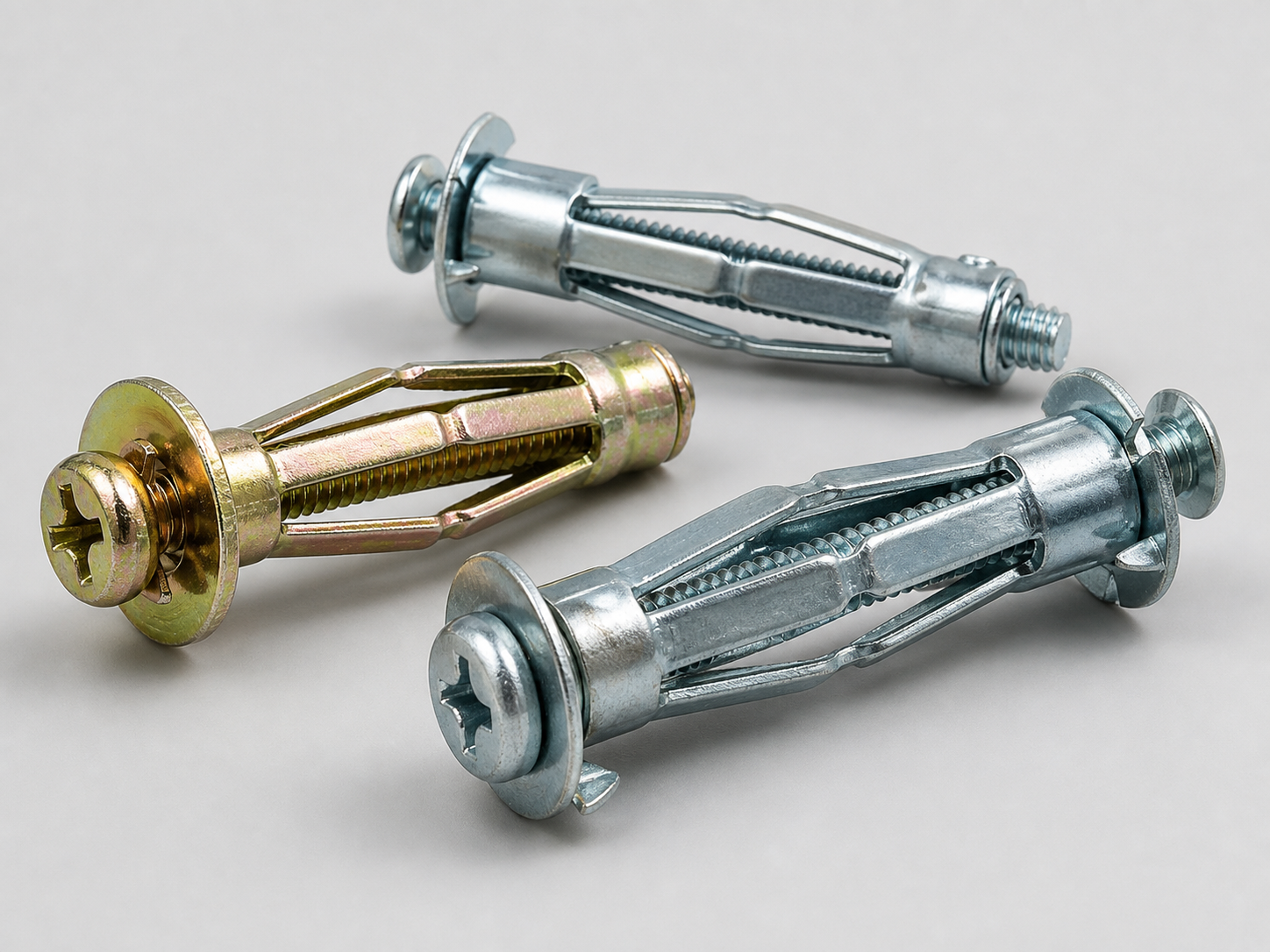

Product reference gallery

Form and finish reference; final compliance follows order documents.

Ordering framework

Confirm the specification before quotation.

This product page identifies the available product family and basic supply range. Final compliance depends on the exact standard, grade, dimensions, finish, mating components, tests and documents stated on the purchase order or approved drawing.

01Standard and editionState the governing product standard, drawing or approved equivalent.

02Grade and classConfirm material grade, property class, condition and any supplementary requirement.

03Size and threadDiameter, pitch or TPI, thread series, fit or tolerance and handedness where applicable.

04Length and geometryOverall or effective length, head or end style, thread length and drawing dimensions.

05Finish and assemblyCoating standard, thickness or color, lubrication and mating-part compatibility.

06Quantity and evidenceLot quantity, packing, marking, MTC, inspection scope and destination requirements.

Request this product with a complete specification.

Product · standard · grade · dimensions · finish · quantity · documents · destination

Attach drawings or a size list in your email or WhatsApp conversation. State any required tests or documents for confirmation.

WhatsApp RFQ Email RFQ
