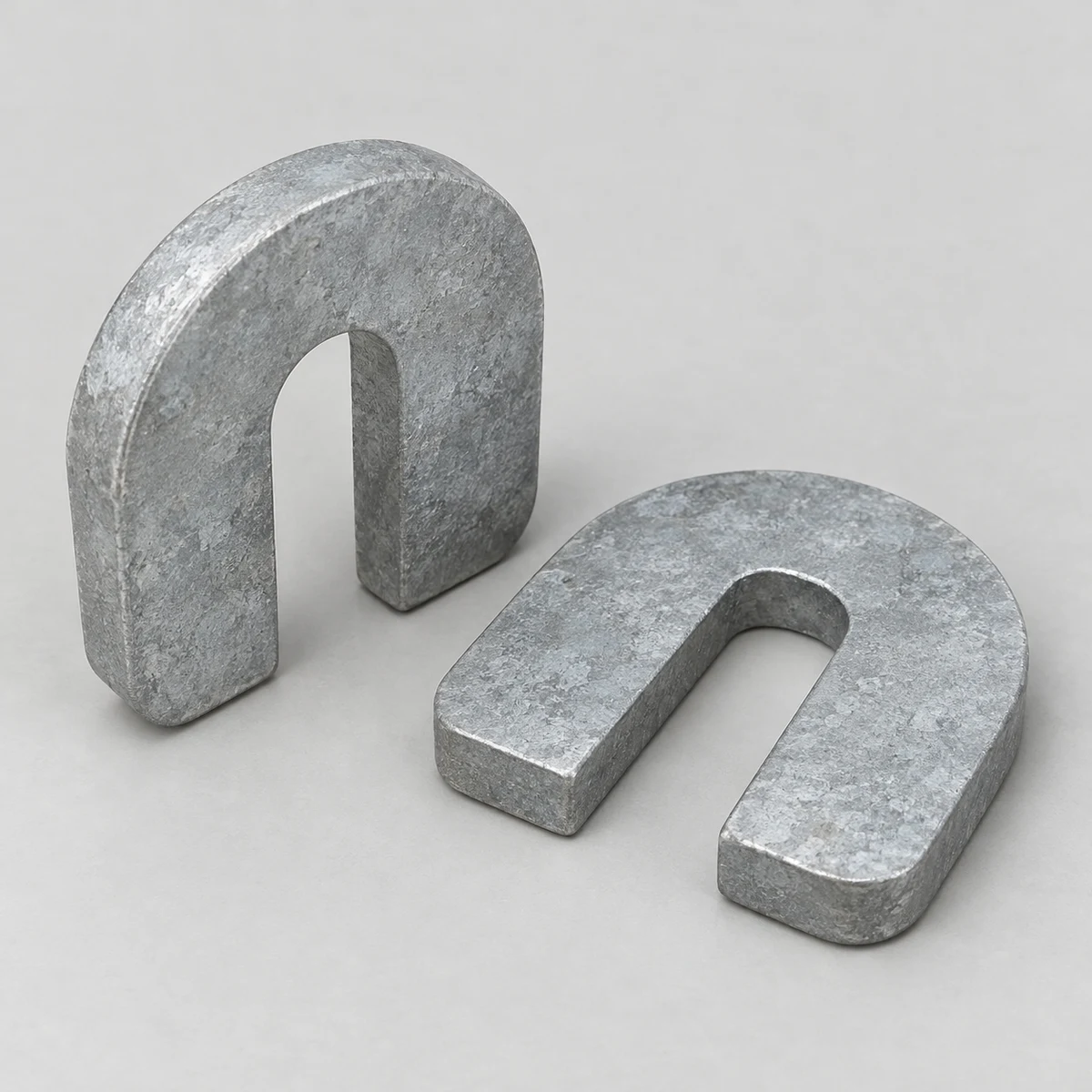

Horseshoe Washer - hot-dip galvanized (product illustration)

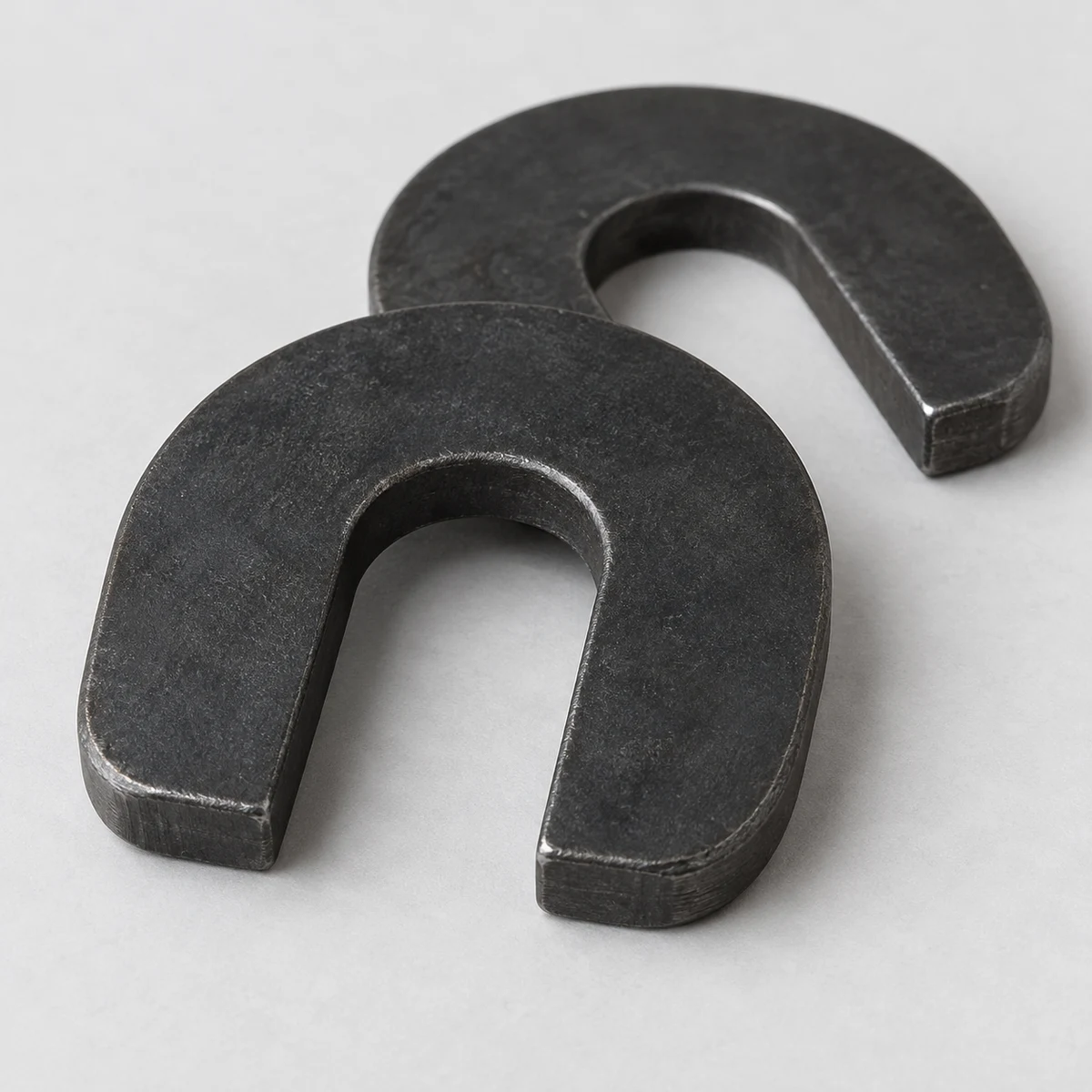

Horseshoe Washer - black finish (product illustration)

Fasteners

Horseshoe Washer

Washers

Used as a slotted washer or spacer in a drawing-defined assembly; thickness, slot fit and contact area must be confirmed for the connection.

Size / Spec

M8-M36 3/8"-1"

Material

Carbon Steel / Stainless Steel

Standard

GB / DIN / Customized

Surface / Finish

Zinc Plated / HDG / Black / Plain

Send Inquiry

Product Details

Horseshoe Washer is used as a slotted washer or spacer in a drawing-defined assembly; thickness, slot fit and contact area must be confirmed for the connection. The current supply reference is GB / DIN / Customized, with Carbon Steel / Stainless Steel, Zinc Plated / HDG / Black / Plain, and M8-M36 3/8"-1".

Final dimensions, tolerances, grade or class, coating system, matched components, inspection documents and packing must be confirmed against the purchase order, approved drawing or project specification before production.

Selection & Use Steps

Confirm whether the assembly requires a washer, spacer or alignment shim.
Specify outside dimensions, slot width and depth, thickness and tolerances.
Match material and finish to the mating components and environment.
Review contact area and retention in the approved assembly drawing.

Technical Drawing

Specify the open-slot profile, slot width and depth, outside dimensions, thickness, flatness and edge condition. A nominal bolt size alone does not define the washer geometry.

Application Environment

Review contact surfaces, loading, moisture and corrosion exposure. The slotted shape alone does not establish resistance to loosening or a load rating.

Installation & Handling Precautions

Confirm slot clearance, seating and contact area before tightening.
Use only the shim stack or spacing arrangement approved for the assembly.
Do not treat this washer as a locking device without verified design evidence.
Check that the installed part cannot shift out of position under the intended service conditions.

RFQ Checklist

Intended washer, spacer or shim function
Outside dimensions, slot width and depth
Thickness, tolerances, flatness and edge condition
Material, finish and mating fastener dimensions
Quantity, destination, packing and approved assembly drawing

Product reference gallery

Form and finish reference; final compliance follows order documents.

Ordering framework

Confirm the specification before quotation.

This product page identifies the available product family and basic supply range. Final compliance depends on the exact standard, grade, dimensions, finish, mating components, tests and documents stated on the purchase order or approved drawing.

01Standard and editionState the governing product standard, drawing or approved equivalent.

02Grade and classConfirm material grade, property class, condition and any supplementary requirement.

03Size and threadDiameter, pitch or TPI, thread series, fit or tolerance and handedness where applicable.

04Length and geometryOverall or effective length, head or end style, thread length and drawing dimensions.

05Finish and assemblyCoating standard, thickness or color, lubrication and mating-part compatibility.

06Quantity and evidenceLot quantity, packing, marking, MTC, inspection scope and destination requirements.

Request this product with a complete specification.

Product · standard · grade · dimensions · finish · quantity · documents · destination

Attach drawings or a size list in your email or WhatsApp conversation. State any required tests or documents for confirmation.
