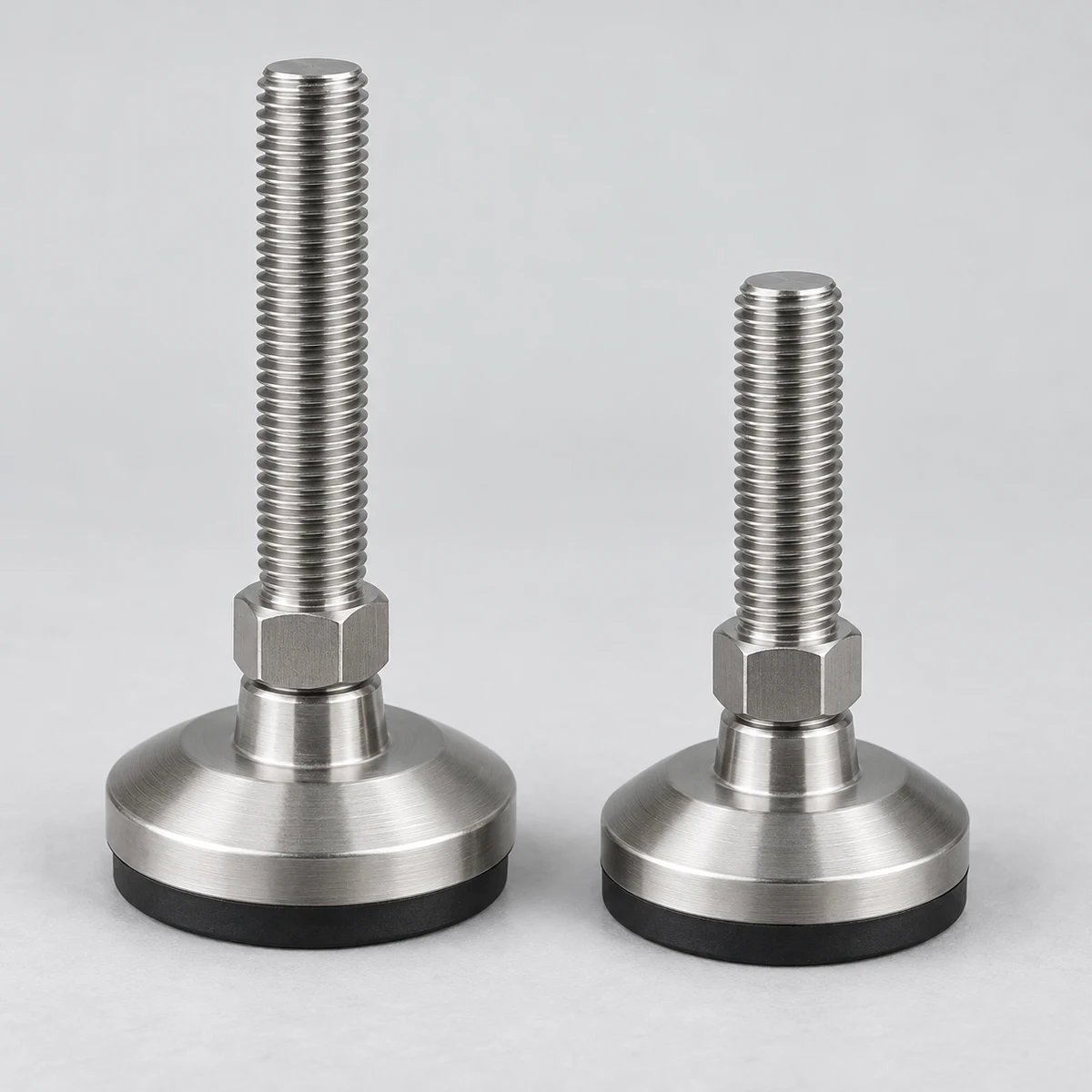

Leveling Foot - natural finish (product illustration)

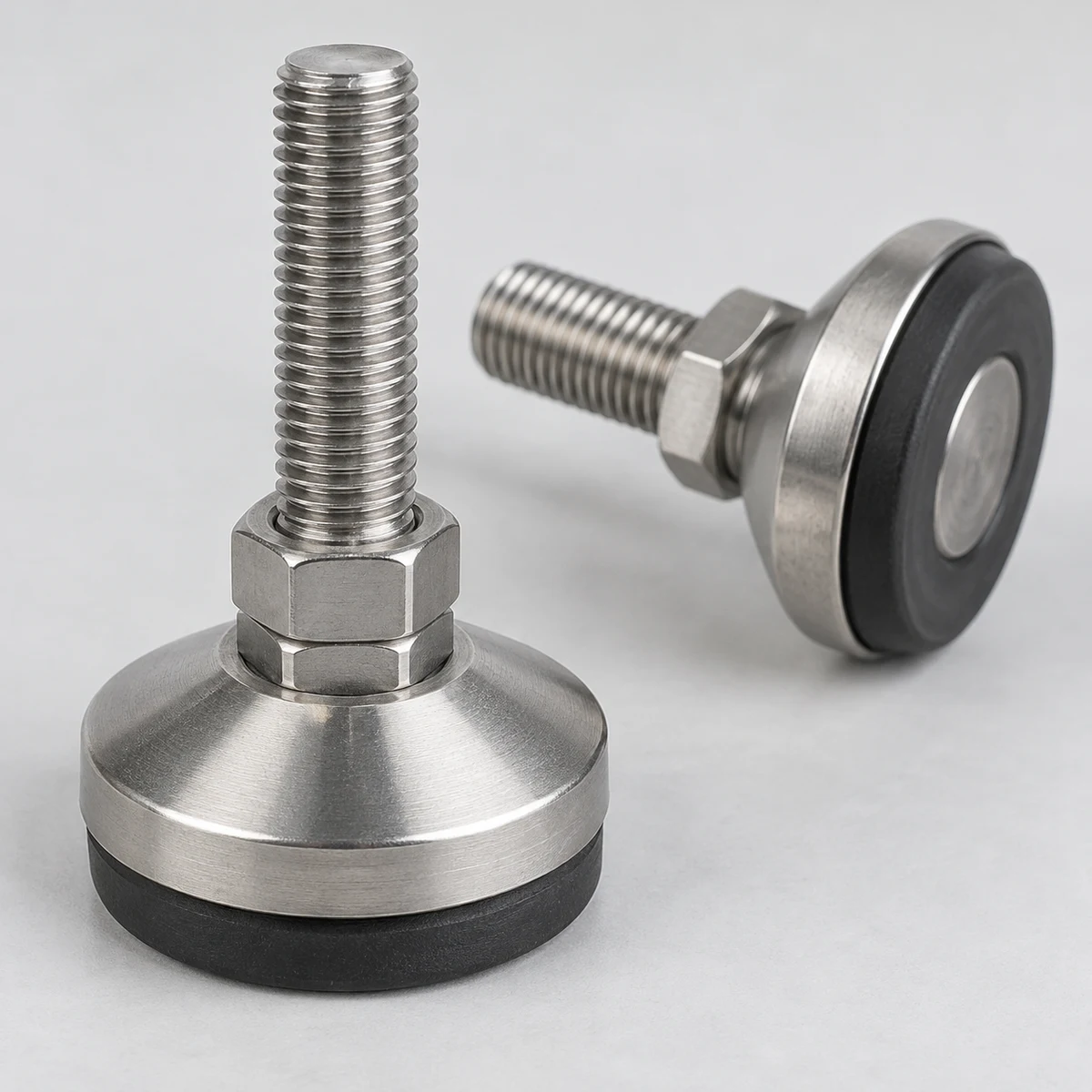

Leveling Foot - nickel plated (product illustration)

Fasteners

Leveling Foot

Leveling Feet

Used to support and adjust the level of equipment, with the foot design and service load confirmed for the installation.

Size / Spec

M6-M30 1/4"-1"

Material

Carbon Steel / Stainless Steel / Rubber

Standard

GB / DIN / Customized

Surface / Finish

Zinc Plated / Nickel Plated / Plain

Send Inquiry

Product Details

Leveling Foot is used to support and adjust the level of equipment, with the foot design and service load confirmed for the installation. The current supply reference is GB / DIN / Customized, with Carbon Steel / Stainless Steel / Rubber, Zinc Plated / Nickel Plated / Plain, and M6-M30 1/4"-1".

Final dimensions, tolerances, grade or class, coating system, matched components, inspection documents and packing must be confirmed against the purchase order, approved drawing or project specification before production.

Selection & Use Steps

Confirm equipment load, support positions and floor condition.
Specify stem thread, stem length, base diameter and adjustment range.
Confirm fixed or articulated base and pad requirements.
Review the selected foot and stem for the actual loading conditions.

Technical Drawing

Confirm stem thread and length, base diameter and height, overall height and adjustment range. Show any articulation, pad or floor-fixing requirement on the approved drawing.

Application Environment

Review floor contact, moisture, chemicals and vibration. Suitability depends on the selected stem, base and pad; material alone does not establish load capacity.

Installation & Handling Precautions

Install on a suitable supporting surface and maintain the specified stem engagement.
Adjust within the approved range and check equipment level at all supports.
Review side or angular loading separately from axial loading.
Use the specified locking arrangement and inspect for movement or damage.

RFQ Checklist

Stem thread, length and required adjustment range
Base diameter, height and fixed or articulated design
Equipment load, support positions and loading conditions
Material, finish, pad and floor-fixing requirements
Quantity, destination, packing and approved equipment drawing

Product reference gallery

Form and finish reference; final compliance follows order documents.

Ordering framework

Confirm the specification before quotation.

This product page identifies the available product family and basic supply range. Final compliance depends on the exact standard, grade, dimensions, finish, mating components, tests and documents stated on the purchase order or approved drawing.

01Standard and editionState the governing product standard, drawing or approved equivalent.

02Grade and classConfirm material grade, property class, condition and any supplementary requirement.

03Size and threadDiameter, pitch or TPI, thread series, fit or tolerance and handedness where applicable.

04Length and geometryOverall or effective length, head or end style, thread length and drawing dimensions.

05Finish and assemblyCoating standard, thickness or color, lubrication and mating-part compatibility.

06Quantity and evidenceLot quantity, packing, marking, MTC, inspection scope and destination requirements.

Request this product with a complete specification.

Product · standard · grade · dimensions · finish · quantity · documents · destination

Attach drawings or a size list in your email or WhatsApp conversation. State any required tests or documents for confirmation.
