Press Rivet Nut

Product Details

Press Rivet Nut is selected for a threaded fixing in a sheet-metal assembly. Confirm the clinching type and approved geometry, sheet thickness and hardness, mounting hole and installation access before selection. Press-installed self-clinching nuts and blind rivet nuts use different installation methods; do not substitute one for the other from the name alone. PEM is a manufacturer brand reference; any required branded part or equivalence must be separately confirmed against an identified part number and drawing. The current supply reference is Approved product drawing / specified clinching-nut type, with Carbon Steel / Stainless Steel, Zinc Plated / Nickel Plated / Plain, and M2-M12 /Customized.

Final dimensions, tolerances, grade or class, coating system, matched components, inspection documents and packing must be confirmed against the purchase order, approved drawing or project specification before production.

Selection & Use Steps

Confirm the required clinching-nut type, identified part number or approved product drawing; distinguish it from a blind rivet nut.
Specify thread and tolerance, clinching geometry, sheet material, sheet thickness and sheet hardness.
Confirm mounting-hole size and tolerance, edge distance, nearby bends and access for the specified installation tooling.
For a press-installed self-clinching type, use suitable punch and anvil support and the product-specific installation procedure.
Confirm installed thread condition and any required pushout or torque-out acceptance checks against the approved assembly specification.

Technical Drawing

Specify thread series and tolerance, nut envelope, shank or clinching geometry, mounting-hole size and tolerance, sheet thickness, sheet material and hardness, and required hole-to-edge distance.

Show nearby bends, tooling access and punch/anvil support. Confirm the identified product drawing and installation method; a similar appearance does not establish interchangeability with a branded part or blind rivet nut.

Application Environment

Selection depends on the sheet material, thickness and hardness, clinching type, installation access and intended assembly loads. Review vibration, moisture, chemicals, temperature and corrosion, including compatibility between the fastener and sheet.

Installed retention depends on the selected product and sheet preparation. Confirm required pushout and torque-out performance through applicable product data or assembly testing; no universal retention value is stated.

Installation & Handling Precautions

Confirm whether the specified product is a press-installed self-clinching nut or a blind rivet nut before choosing tooling.
Check sheet thickness and hardness, mounting-hole tolerance and edge distance against the identified product instructions.
For a press-installed self-clinching type, keep punch and anvil contact surfaces parallel and support the sheet with the specified tooling.
Use the product-specific installation force and seating procedure; do not select a generic force or use bolt tightening as an installation method.
Inspect seating, sheet deformation, thread condition and required retention checks before accepting the assembly.

RFQ Checklist

Press Rivet Nut type, identified part number and approved product drawing
Thread size, pitch and tolerance; nut and clinching geometry
Sheet material, thickness and hardness
Mounting-hole size and tolerance, edge distance and nearby bends
Installation method, tooling access and required installed retention checks
Required material and finish, quantity, packing and destination
If a branded part or equivalent is required, identify the manufacturer, part number and acceptance documents for separate confirmation

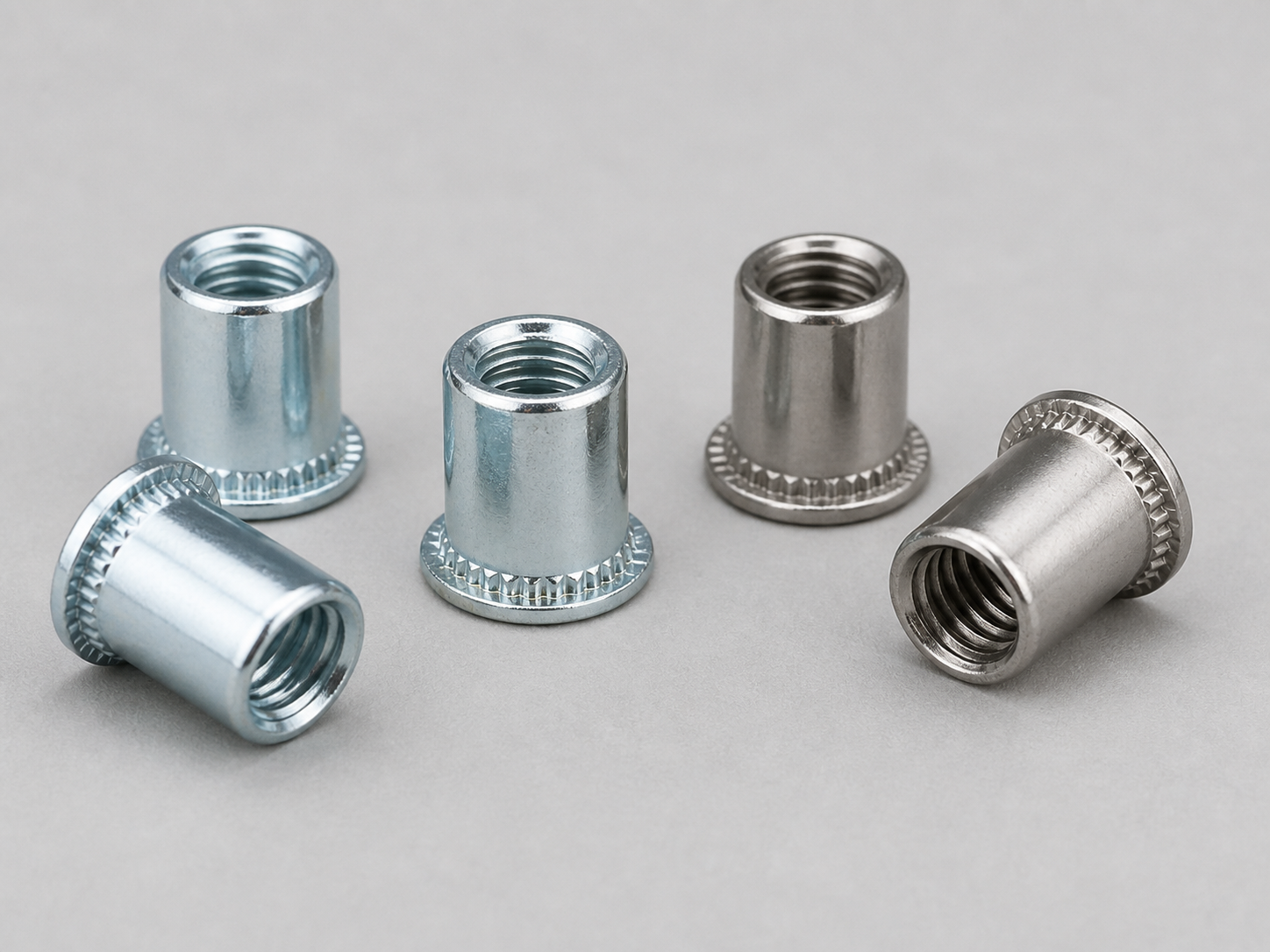

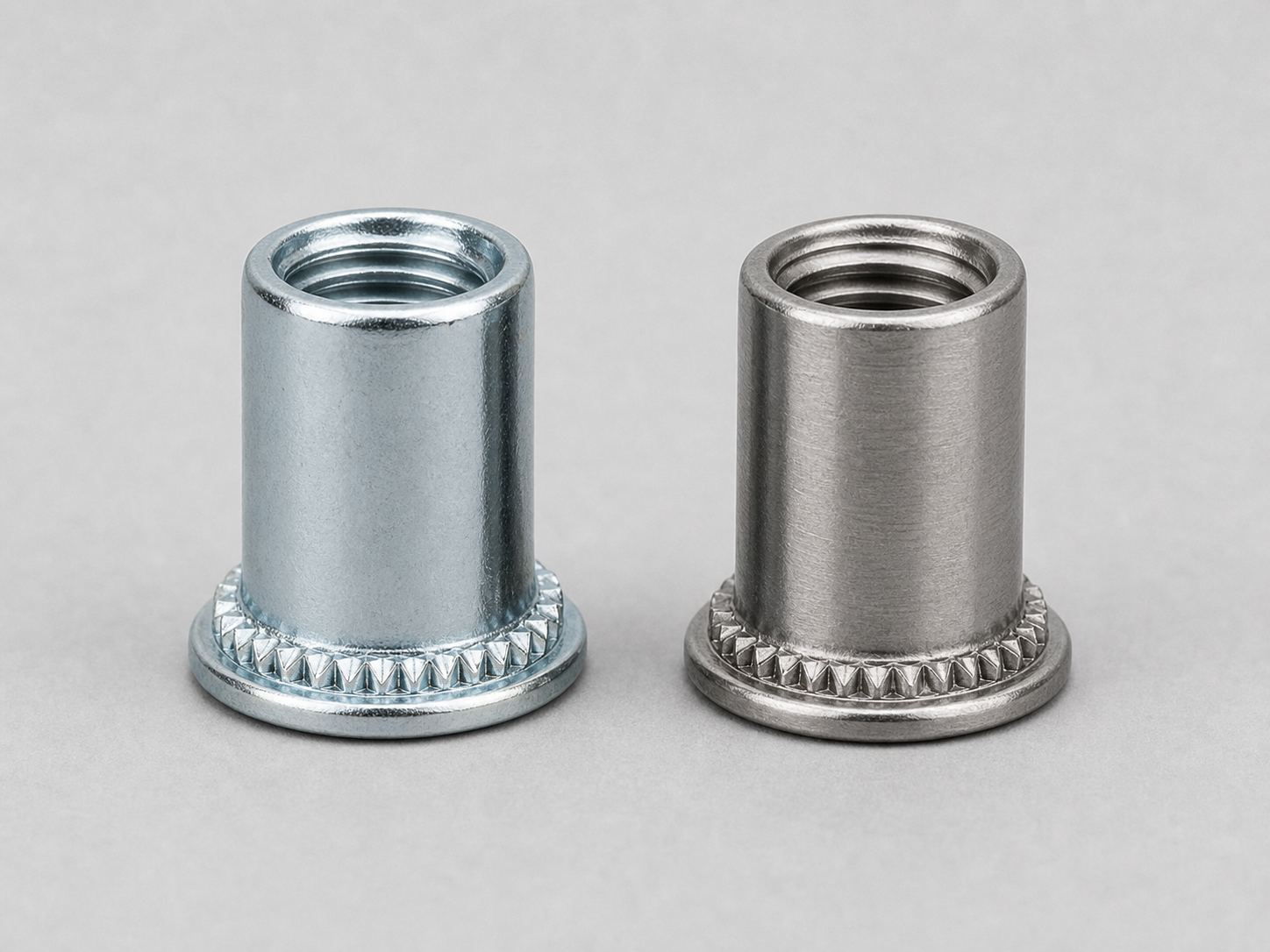

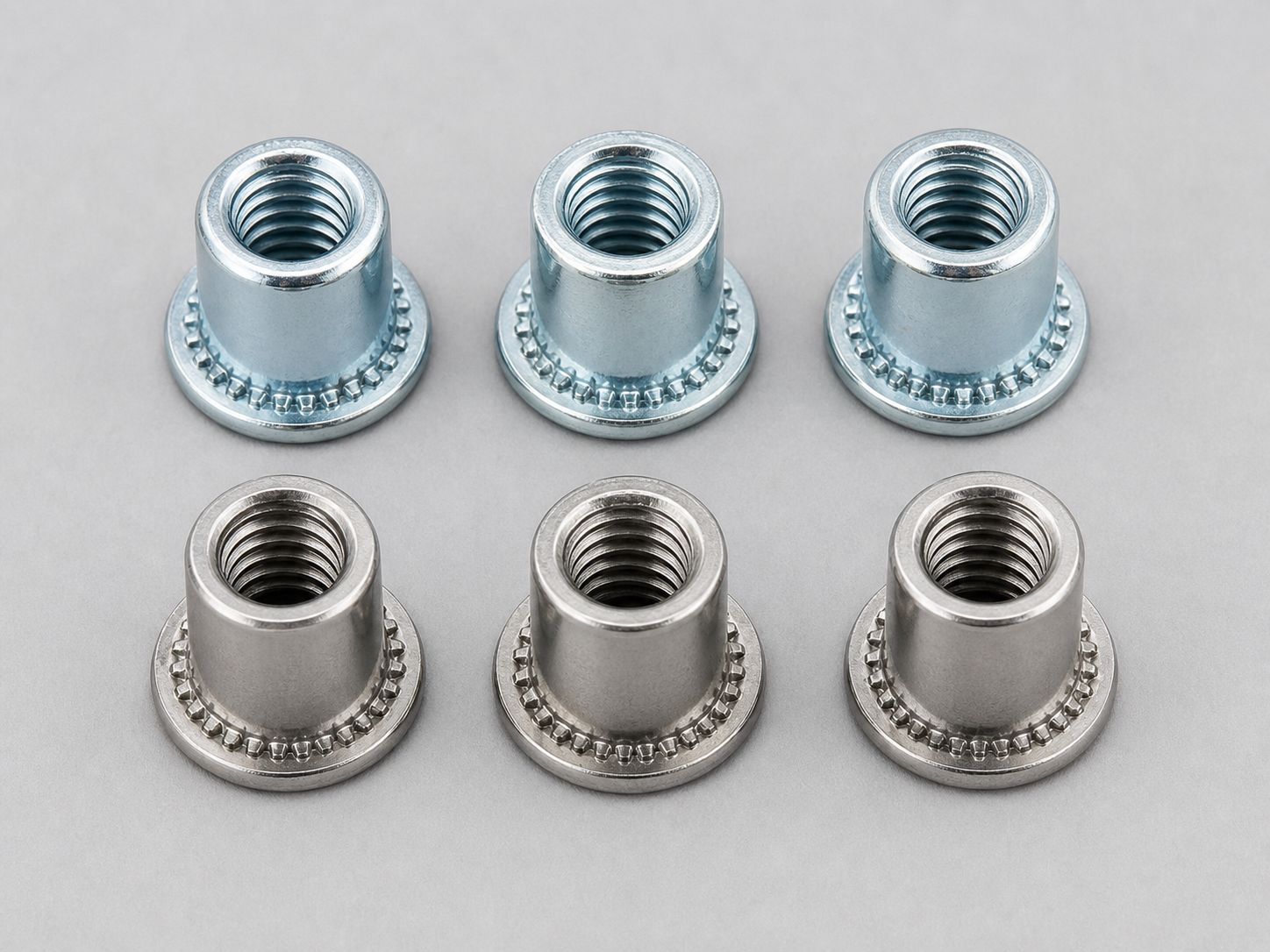

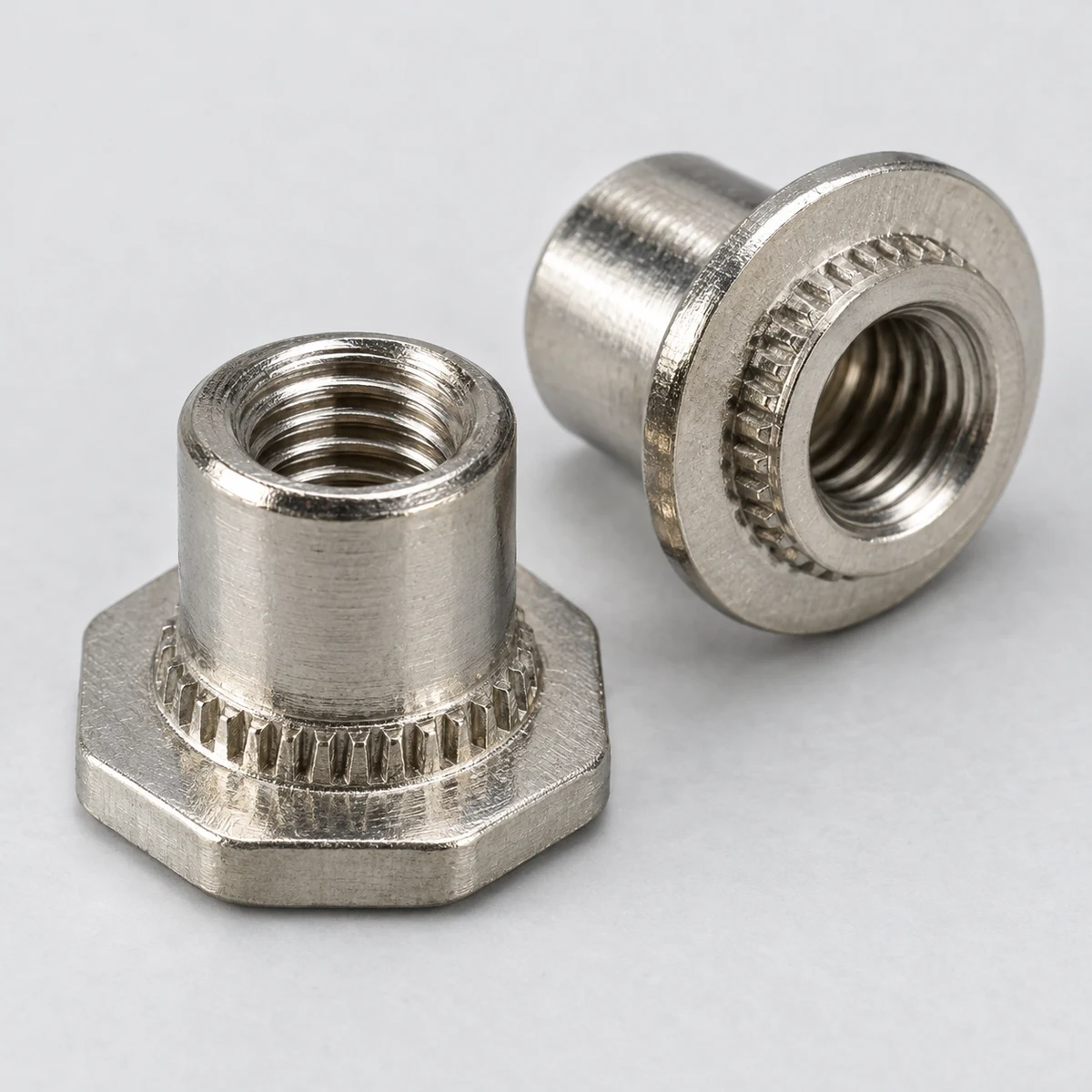

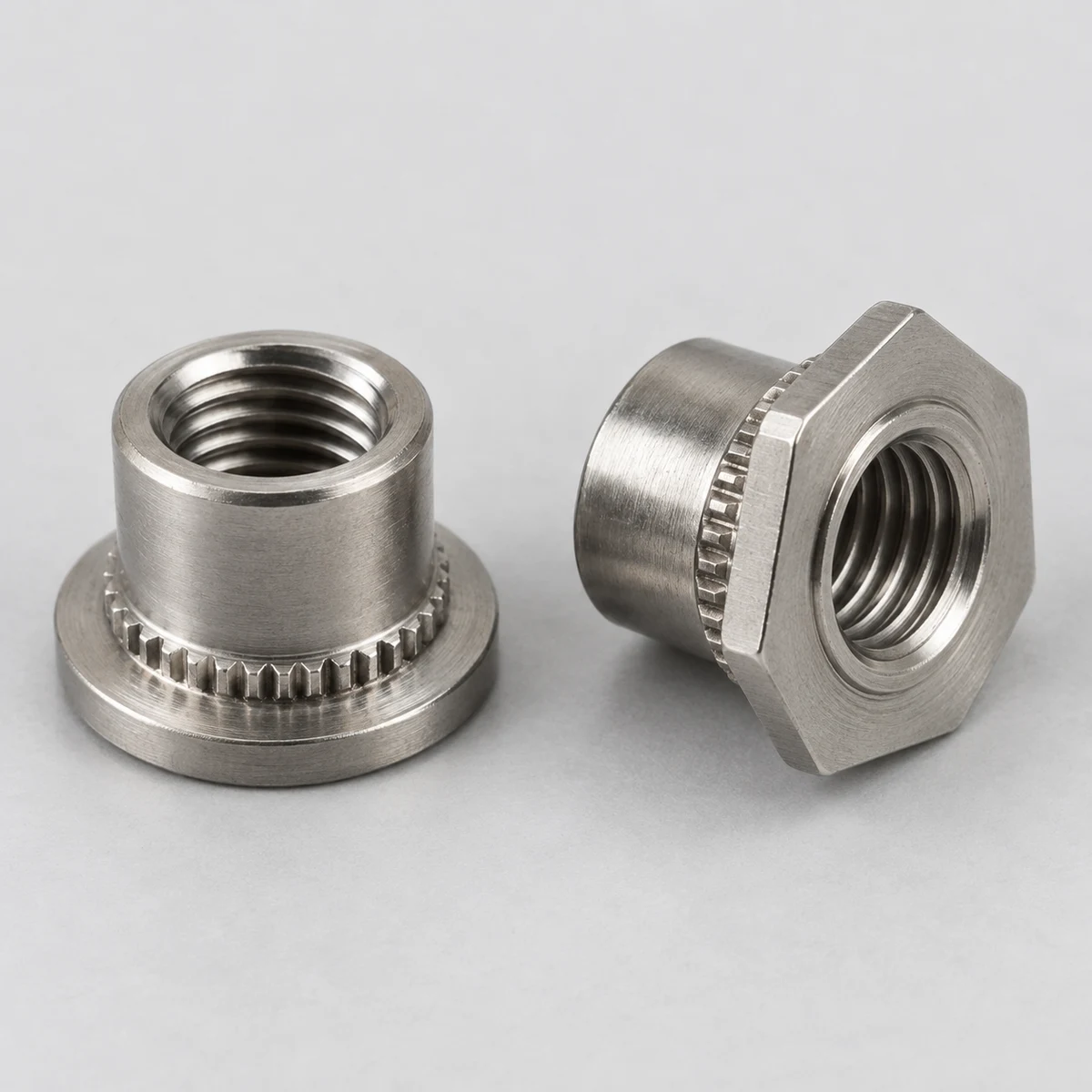

Product reference gallery

Form and finish reference; final compliance follows order documents.

Ordering framework

Confirm the specification before quotation.

This product page identifies the available product family and basic supply range. Final compliance depends on the exact standard, grade, dimensions, finish, mating components, tests and documents stated on the purchase order or approved drawing.

01Standard and editionState the governing product standard, drawing or approved equivalent.

02Grade and classConfirm material grade, property class, condition and any supplementary requirement.

03Size and threadDiameter, pitch or TPI, thread series, fit or tolerance and handedness where applicable.

04Length and geometryOverall or effective length, head or end style, thread length and drawing dimensions.

05Finish and assemblyCoating standard, thickness or color, lubrication and mating-part compatibility.

06Quantity and evidenceLot quantity, packing, marking, MTC, inspection scope and destination requirements.

Request this product with a complete specification.

Product · standard · grade · dimensions · finish · quantity · documents · destination

Attach drawings or a size list in your email or WhatsApp conversation. State any required tests or documents for confirmation.
