Product Details

This product combines ASTM A193 Grade B7 alloy-steel bolting with a specified fluoropolymer coating system. “PTFE coated” is not a complete purchase description: the coating brand/system, colour, thickness range, pretreatment, compatible nuts and lubricant must be agreed for the project.

Why coating details matter

Coating thickness changes thread fit and must be coordinated with the nut.
Coating and lubricant change the torque-tension relationship.
Chemical, temperature, UV and handling exposure determine whether the selected system is suitable.
Holiday, adhesion, thickness and cure checks are only included when specified in the inspection plan.

Selection & Use Steps

Confirm ASTM A193 B7 and the service environment.
Specify the complete coating system, colour, thickness range, pretreatment and approved applicator requirements if any.
Confirm diameter, thread, total length, chamfer and coated mating nuts.
Approve the inspection plan for dimensions, free nut run, coating thickness/condition and documentation.
Protect coated parts during packing and installation; use the project-approved lubrication and tightening method.

Technical Drawing

All-thread stud drawing showing end-to-end length and effective thread length

The reference drawing distinguishes end-to-end length from effective thread length. Coating allowance and mating-nut fit must be defined before production; the drawing does not authorize an arbitrary coating build.

Application Environment

Fluoropolymer-coated B7 may be selected for corrosion protection and controlled assembly behaviour when approved by the project. Suitability depends on the complete coating system, operating environment, temperature, chemical exposure and installation method.

The coating does not change the underlying B7 material grade and should not be presented as a substitute for engineering material selection.

Installation & Handling Precautions

Do not drag or impact coated threads; isolate damaged pieces.
Confirm coated nut compatibility and free nut run before site installation.
Do not repair coating with an unspecified material.
Keep the approved lubricant and coating condition consistent with the tightening procedure.
Reject parts with flaking, severe abrasion, blocked threads or lost traceability.

RFQ Checklist

ASTM A193/A193M Grade B7 and required edition
Diameter, thread, end-to-end length and chamfer
Complete fluoropolymer coating specification, colour and thickness range
Coated nut grade/quantity and lubricant requirement
Inspection plan, MTC, heat traceability and coating report
Quantity, packing protection, application and destination

Product reference gallery

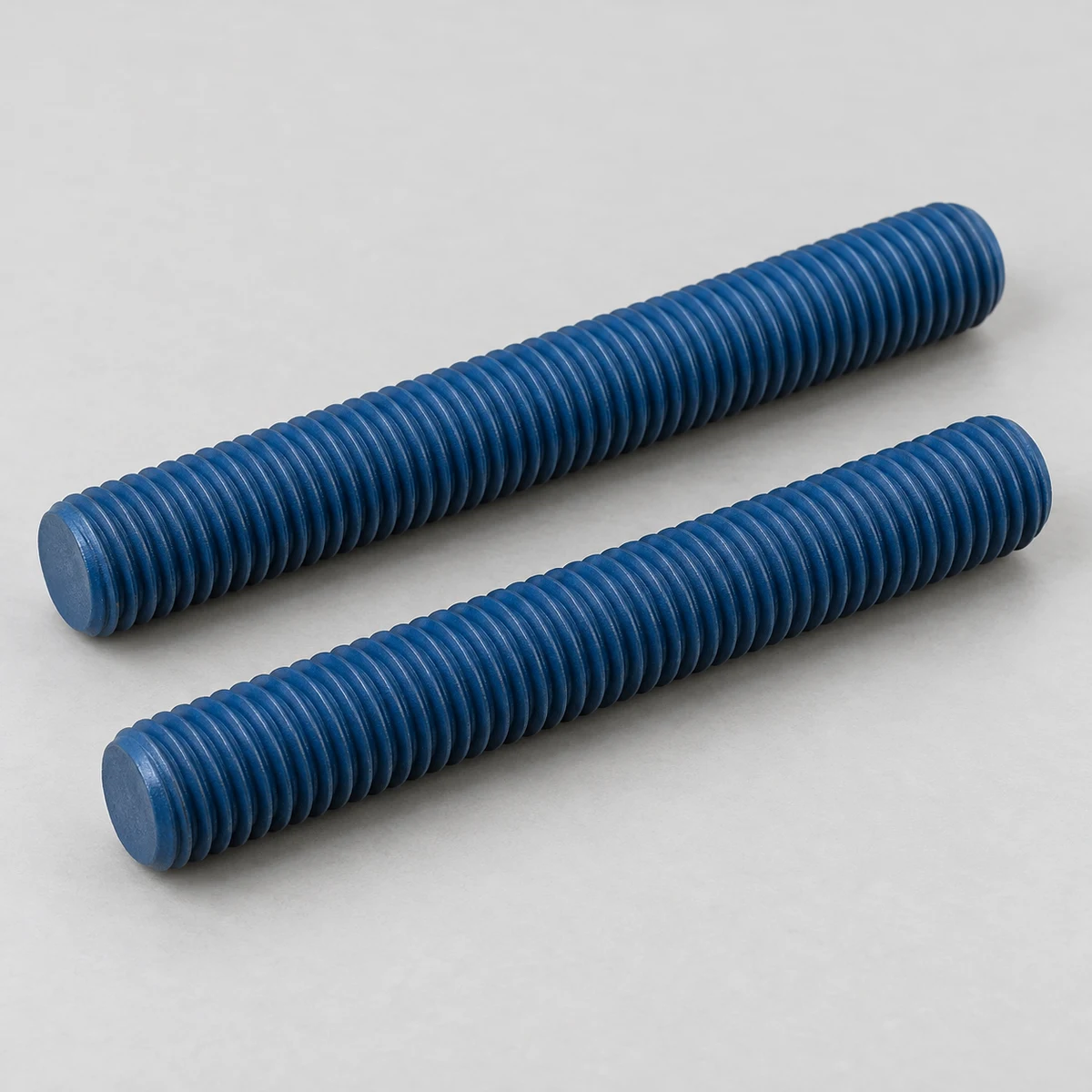

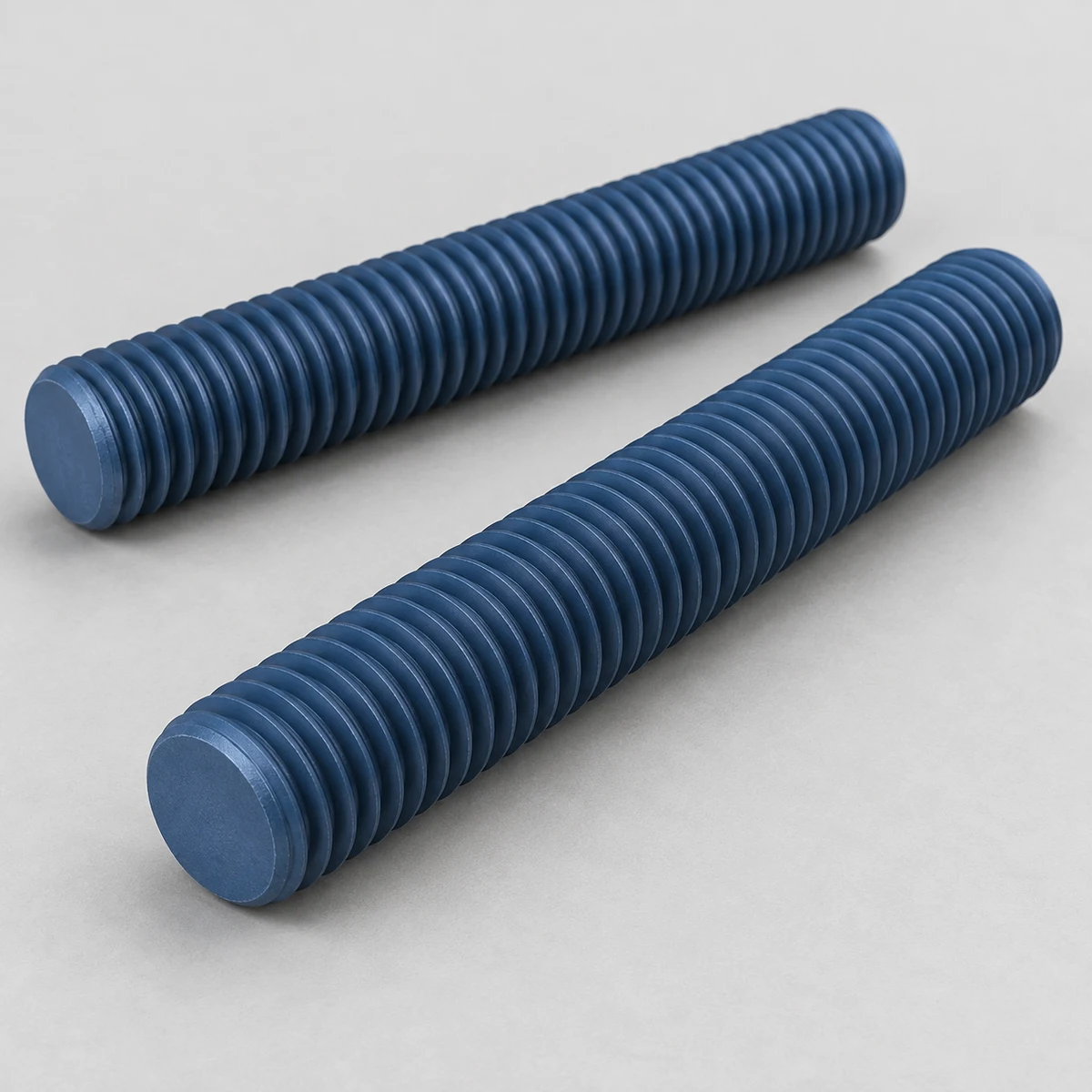

Form and finish reference; final compliance follows order documents.

Ordering framework

Confirm the specification before quotation.

This product page identifies the available product family and basic supply range. Final compliance depends on the exact standard, grade, dimensions, finish, mating components, tests and documents stated on the purchase order or approved drawing.

01Standard and editionState the governing product standard, drawing or approved equivalent.

02Grade and classConfirm material grade, property class, condition and any supplementary requirement.

03Size and threadDiameter, pitch or TPI, thread series, fit or tolerance and handedness where applicable.

04Length and geometryOverall or effective length, head or end style, thread length and drawing dimensions.

05Finish and assemblyCoating standard, thickness or color, lubrication and mating-part compatibility.

06Quantity and evidenceLot quantity, packing, marking, MTC, inspection scope and destination requirements.
