Self-undercut Anchor

Product Details

Self-undercut Anchor is supplied for concrete fixing, foundation anchoring, ceiling installation, equipment fixing, and building construction. The current supply reference is Project specification / approved drawing, with Carbon Steel / Stainless Steel, Zinc Plated / HDG / Dacromet, and M6-M24 1/4"-1".

Final dimensions, tolerances, grade or class, coating system, matched components, inspection documents and packing must be confirmed against the purchase order, approved drawing or project specification before production.

Where a European Technical Assessment (ETA) is required, confirm the assessment number, manufacturer, exact product and covered use before quotation. A generic product name or illustration does not establish assessed performance.

Selection & Use Steps

Confirm the base material, design load, fixture thickness and installation location.
Select anchor type, diameter, embedment and material from the approved engineering specification.
Check edge distance, spacing, hole diameter and drilling depth before installation.
Clean and prepare the hole, then install with the specified tool and procedure.
Complete the required inspection or proof test and record the installation result.
Where an ETA is specified, verify that its manufacturer, product identity, dimensions, substrate, intended use and installation conditions match the proposed anchor.

Technical Drawing

Confirm all dimensions against the approved drawing before production. Typical control points include overall length, diameter, thread series and tolerance, threaded length, end condition, head or point geometry where applicable, coating allowance and mating-part fit.

The technical drawing shown on this page, when available, is a selection reference and does not replace the buyer-approved manufacturing drawing.

Application Environment

Suitable application depends on the confirmed material, grade, finish and project design. Review exposure to moisture, chemicals, salt, temperature, vibration and dissimilar metals before selection.

For outdoor or corrosive service, confirm that the selected coating or stainless grade is compatible with the required service life and installation method.

Installation & Handling Precautions

Do not mix grades, heat numbers, thread series or nut classes during storage and installation.
Protect threads and coatings from impact, contamination and uncontrolled repair.
Confirm nut and washer compatibility, coating allowance and free thread engagement before assembly.
Do not apply a generic torque value; tightening depends on lubrication, coating, joint design and the approved engineering procedure.
Replace components with damaged threads, uncertain identification or unacceptable coating condition.

RFQ Checklist

Product name and governing project specification or approved drawing
Grade, class or material: Carbon Steel / Stainless Steel
Diameter, thread, length and relevant dimensions: M6-M24 1/4"-1"

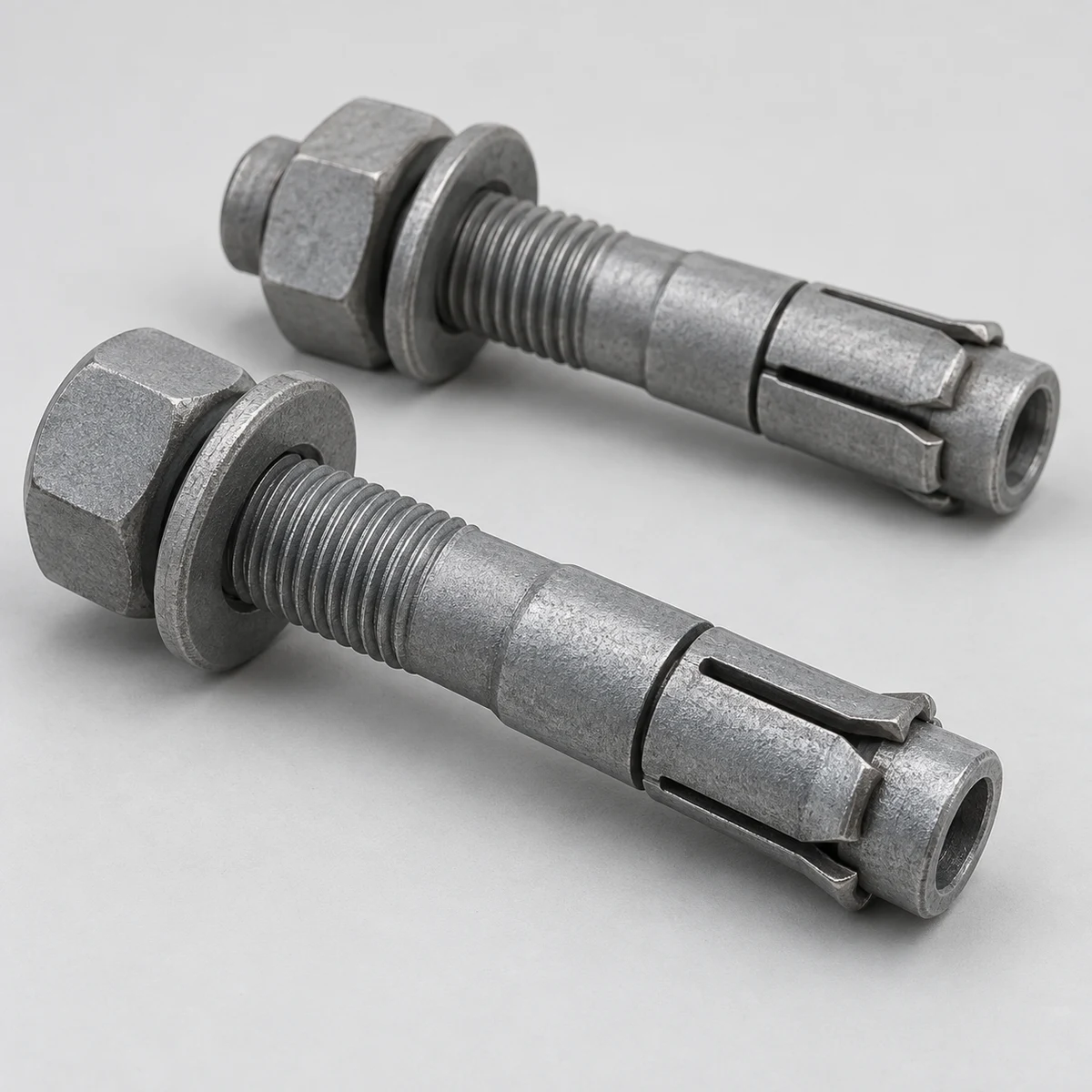

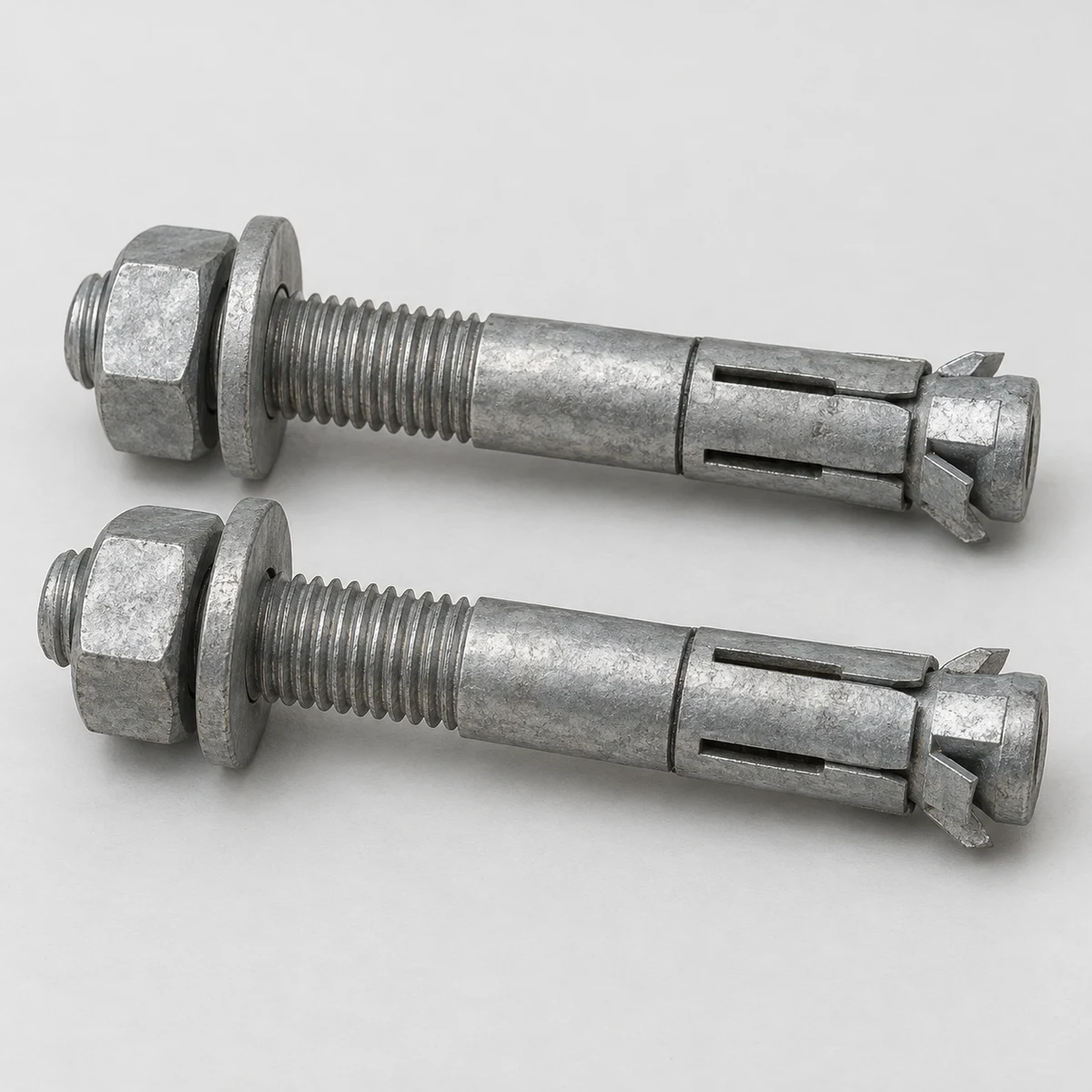

Surface finish or coating: Zinc Plated / HDG / Dacromet
Quantity, matched nuts or washers, and packaging requirement
Required MTC, heat traceability, inspection or third-party documentation
Application, destination and any approved drawing or project specification
If an ETA is required: assessment number, manufacturer, exact product and covered sizes, substrate and intended use

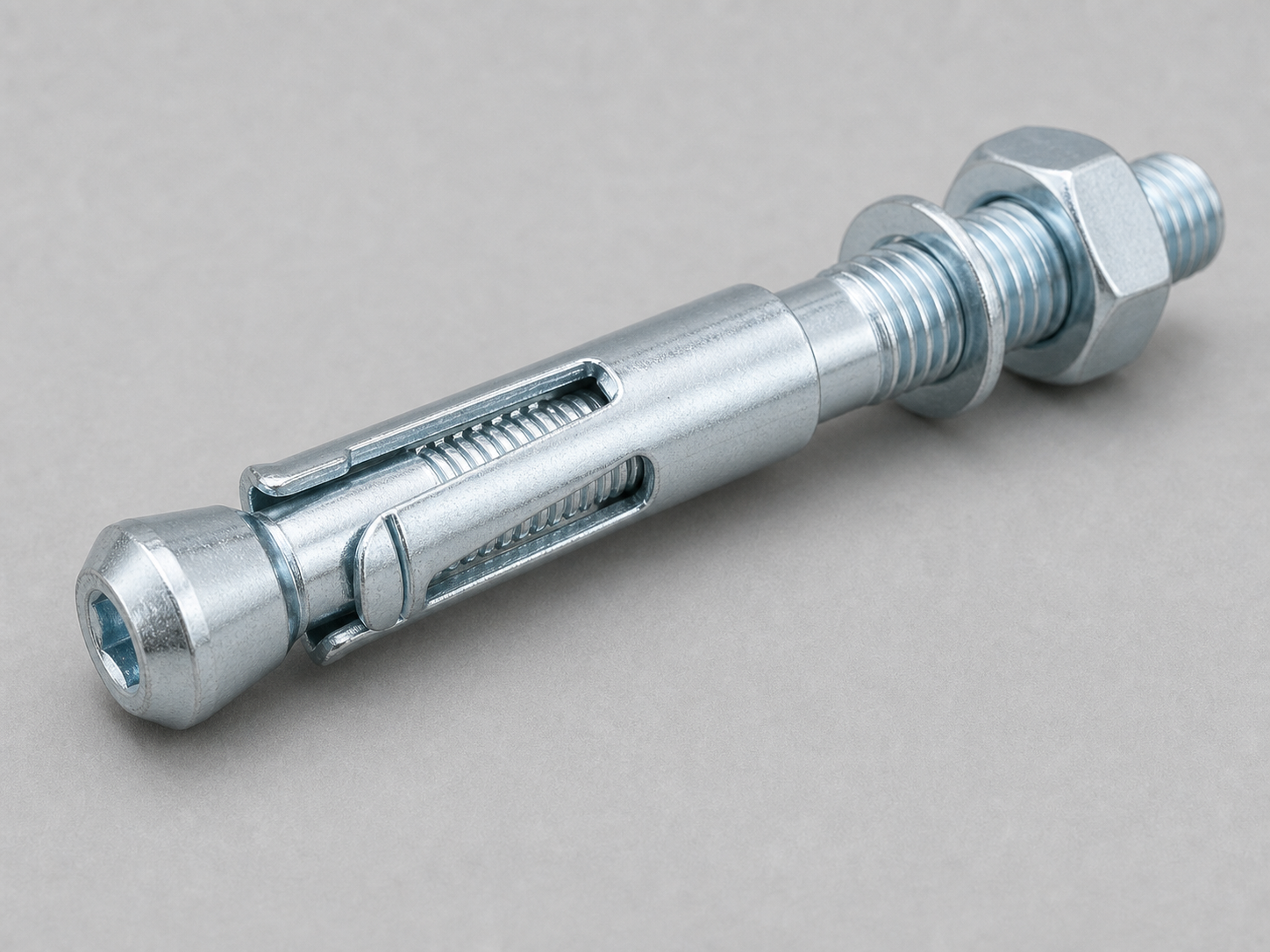

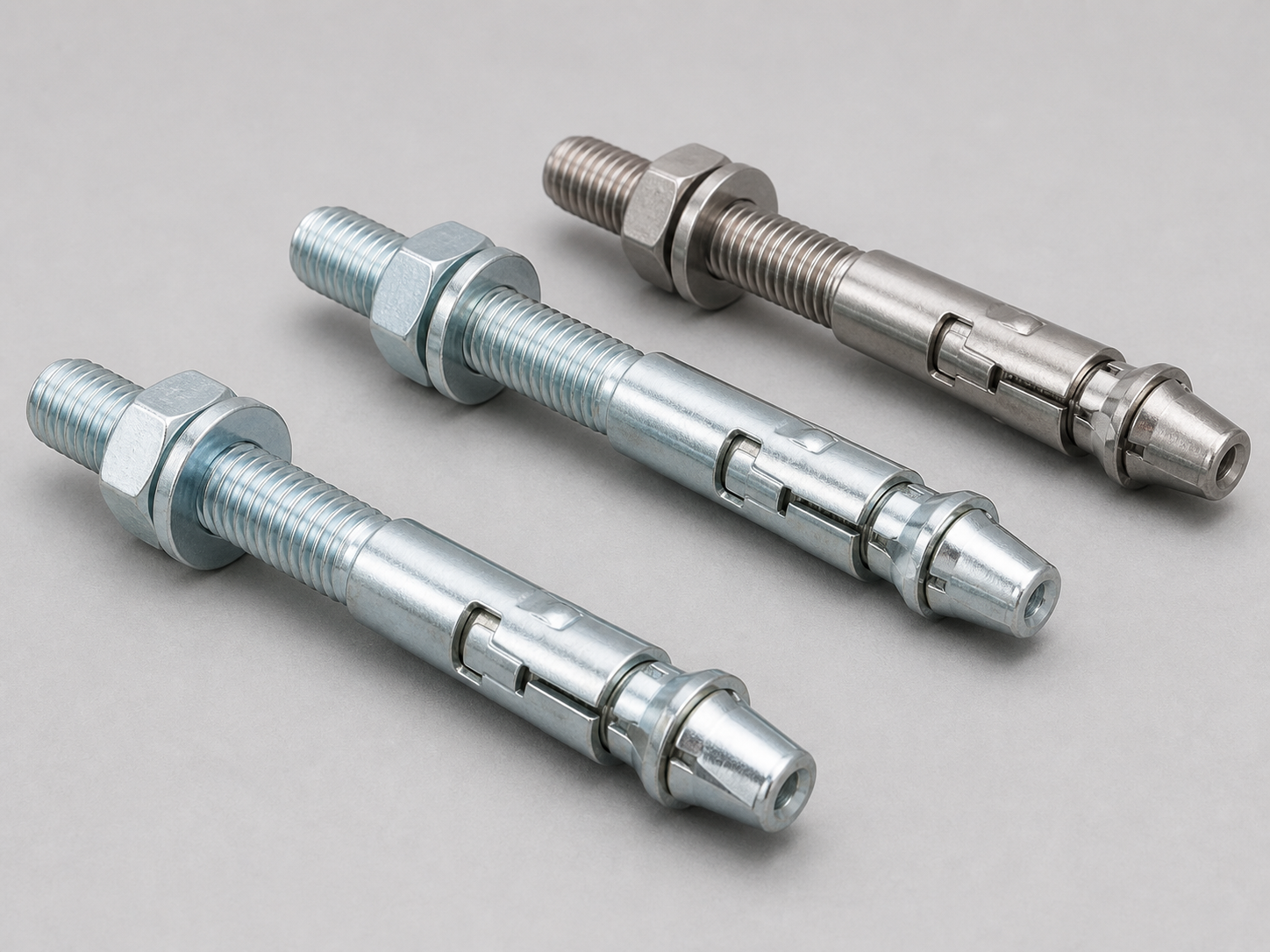

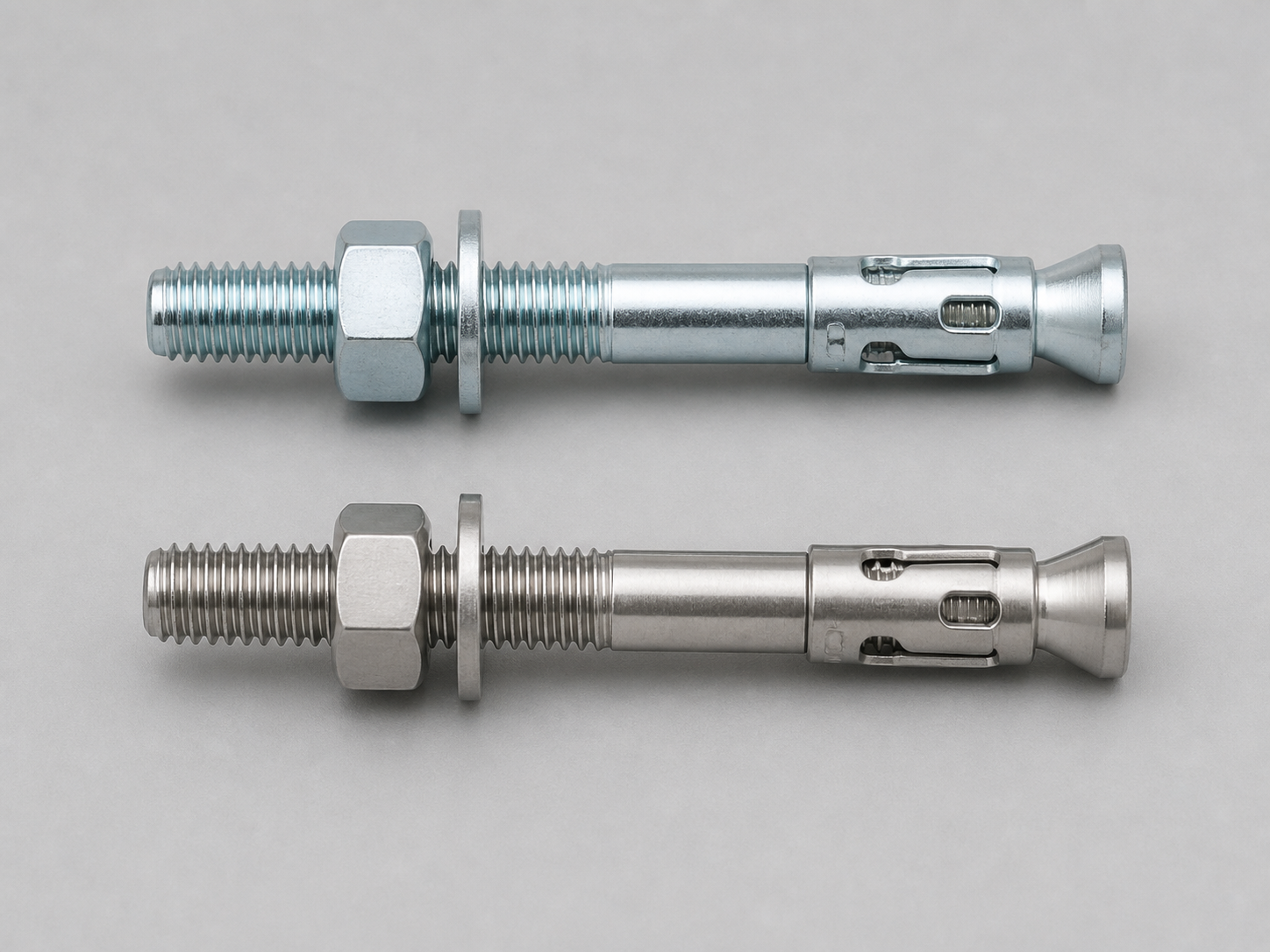

Product reference gallery

Form and finish reference; final compliance follows order documents.

Ordering framework

Confirm the specification before quotation.

This product page identifies the available product family and basic supply range. Final compliance depends on the exact standard, grade, dimensions, finish, mating components, tests and documents stated on the purchase order or approved drawing.

01Standard and editionState the governing product standard, drawing or approved equivalent.

02Grade and classConfirm material grade, property class, condition and any supplementary requirement.

03Size and threadDiameter, pitch or TPI, thread series, fit or tolerance and handedness where applicable.

04Length and geometryOverall or effective length, head or end style, thread length and drawing dimensions.

05Finish and assemblyCoating standard, thickness or color, lubrication and mating-part compatibility.

06Quantity and evidenceLot quantity, packing, marking, MTC, inspection scope and destination requirements.

Request this product with a complete specification.

Product · standard · grade · dimensions · finish · quantity · documents · destination

Attach drawings or a size list in your email or WhatsApp conversation. State any required tests or documents for confirmation.

WhatsApp RFQ Email RFQ
